PE 600x900 Jaw Crusher Limestone Crusher Machine High Efficiency
Reliable Working Conditions

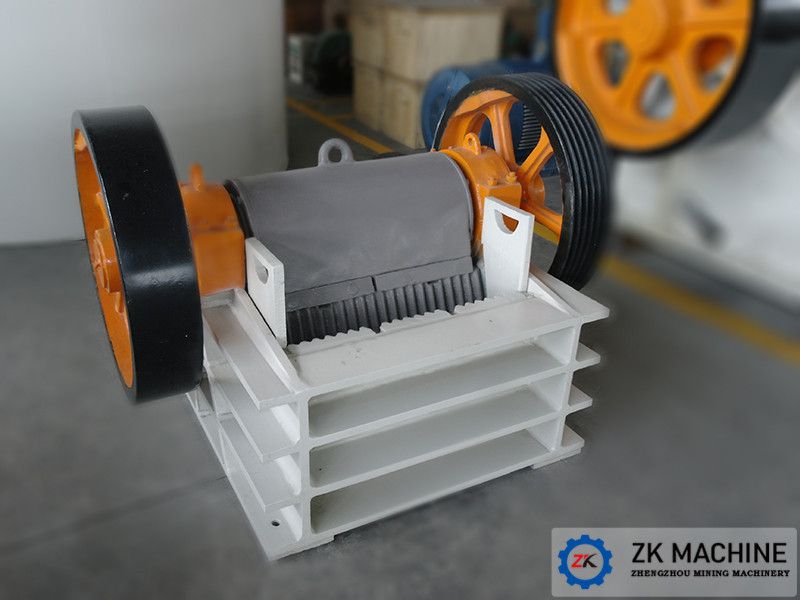

Overview of Jaw Crusher
Our jaw crushers can meet most capacity requirements in pirmary and
secondary crushing and widely applied in areas of mining, smelting,
construction material, high way, water conservancy and chemical
industries with compression strength of no more than 320mpa. It
hasmany advantages, such as big reduction ratio, equal product
graularity, simple structure, reliable working conditions,
convenient maintenance and economical operation.
Processing materials: various rocks, ores, limestone, construction
waste, etc., used in the crushing of bulk materials in metallurgy,
building materials, mining, highway, mineral processing and other
industries.
Features:
1. High quality: Unique jaw head structure sealed guarantee extend
bearing life.
2. Deep cavity broken: High crushing ratio, even output
granularity.
3. High strength: The crusher has large capacity and big stength.
4. High bearing capacity: The bearing pedestal adopts unitary cast
steel structure.
5. Outlet easy operation: More advanced movable jaw assembly makes
it more durable.
6. Unique flywheel design: Effecively reduce the vibration the
machine running more smoothly.
Main Technical Parameters
| Model | Feed Inlet Size (mm) | Max Feed
Size (mm) | Discharge Size Range (mm) | Capacity
(m3/h ) | Motor Power
(kw) |
| PE-250x400 | 250x400 | 210 | 20-60 | 3-13 | 15 |
| PE-400x600 | 400x600 | 340 | 40-100 | 10-35 | 30 |
| PE-500x750 | 500x750 | 425 | 50-100 | 25-60 | 55 |
| PE-600x900 | 600x900 | 500 | 65-180 | 30-85 | 55-75 |
| PE-750x1060 | 750x1060 | 630 | 80-180 | 72-150 | 90-110 |
| PE-800x1060 | 800x1060 | 680 | 100-200 | 85-143 | 90-110 |
| PE-870x1060 | 870x1060 | 750 | 170-270 | 145-235 | 90-110 |
| PE-900x1060 | 900x1060 | 780 | 200-290 | 170-250 | 90-110 |
| PE-900x1200 | 900x1200 | 780 | 95-255 | 100-240 | 110-132 |
| PE-1000x1200 | 1000x1200 | 850 | 195-280 | 190-275 | 110-132 |
| PE-1200x1500 | 1200x1500 | 1020 | 150-300 | 250-500 | 160 |
| PEX-150x500 | 150x500 | 120 | 10-40 | 3-15 | 11 |
| PEX-150x750 | 150x750 | 120 | 10-40 | 5-16 | 18.5 |
| PEX-250x750 | 250x750 | 210 | 15-50 | 8-35 | 30 |
| PEX-250x1000 | 250x1000 | 210 | 15-50 | 13-45 | 37 |
| PEX-250x1200 | 250x1200 | 210 | 15-50 | 13-50 | 37 |
| PEX-300x1300 | 300x1300 | 250 | 15-50 | 20-60 | 75 |
