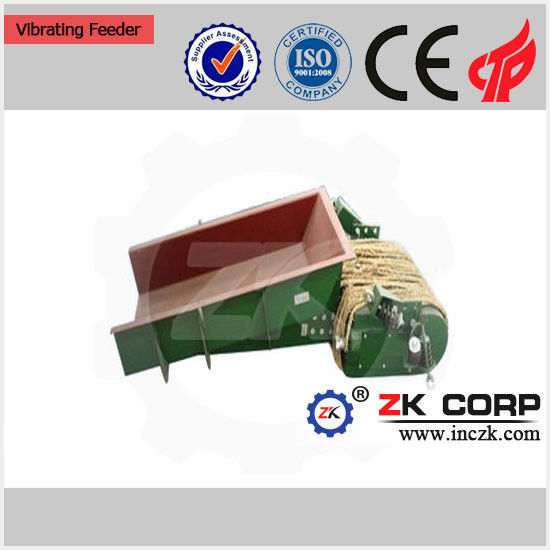

Light Weight Mining/ Metallurgy GZ Series Electromagnetic Vibrating
Feeder
GZ Series Electromagnetic Vibrating Feeder Description:
Vibrating feeder is used to feed block or granule materials from
material storage to a charging device evenly and continuously. Used
to achieve an even feeding for crushers in sandstone production
lines, and to make a rough screening of materials, this equipment
is widely used in combined operation with crushing and screening
machines in a range of industries
GZ Series Electromagnetic Vibrating Feeder Features:
1) Stable vibrating
2) Reliable operation, long usage life
3) Adjustable excitation force and
4) Stable and convenient control of flow
5) Vibrating motor as excitation source
a) Low noise
b) Low power consumption
6) Good adjusting performance and without material splash
7) Simple structure
8) Convenient to install and maintain
9) Light weight, small size
10) Enclosed type can prevent dust pollution (optional)
GZ Series Electromagnetic Vibrating Feeder Technical Data:
| Model | Capacity(t/h) | Max Feed Size(mm) | Motor Power(kw) |
| Level | -10° |
| GZ1 | 5 | 7 | 50 | 0.06 |
| GZ2 | 10 | 14 | 50 | 0.15 |
| GZ3 | 25 | 35 | 75 | 0.2 |
| GZ4 | 50 | 70 | 100 | 0.45 |
| GZ5 | 100 | 140 | 150 | 0.65 |
| GZ6 | 150 | 210 | 200 | 1.5 |
| GZ7 | 250 | 350 | 250 | 3 |
| GZ8 | 400 | 560 | 300 | 4 |
| GZ9 | 600 | 840 | 350 | 5.5 |
GZ Series Electromagnetic Vibrating Feeder Our Advantages:
It can evenly, continuously and quantificationally send the
material with shape of block and grain form storage bin to the
feeder. For instance, the feeding of belt conveyor, bucket
elevator, sieving machines, crusher and grinder, and the automatic
burdening and packaging, etc. It can be used in the process of
automatic control to realize the automation of production.
1. Adopt Silicon controlled rectifier half-wave rectifier control
method, when operating, automatic control can be realized by adjust
the development angle of silicon controlled.
2. When operating, material will been throw up continuous, then
jumping forward with parabolic trajectory, so that have less
abrasion to screen cell.
3. Widely application, alloy screen cell feeder can used for
conveying wear and corrosive materials, sealing structure feeder
can used for high pollution and easy to dust material.
4. Feeder with features like small overall size, light weight,
simple structure, no need lubrication and easy to maintenance.
GZ Series Electromagnetic Vibrating Feeder Working Principle:
GZ series Electromagnetic Vibration Feeder is mainly composed with
material tank, electromagnetic vibration exciter, damper spring and
control box, the features are showing as below:
1. Material Tank
Tank has been welding by wear-resistance steel plate, with high
strength and rigidity, mainly used for conveying.
2. Electromagnetic Vibration Exciter
Exciter mainly composed with electromagnet (Iron core and coil),
armature and the main vibration spring between each. Exciter is the
vibration source, which can adjust the strength of vibration force
by control device.
3. Damper Spring
Damper spring is steel make spiral spring, with high reliability
and stability.
4. Control Box
Mainly used for adjusting the discretion of the rectifier voltage
to realize the control for vibration force.
