Small Scale Production Rotary Drum Granulator / Granulation
Equipment For Sale

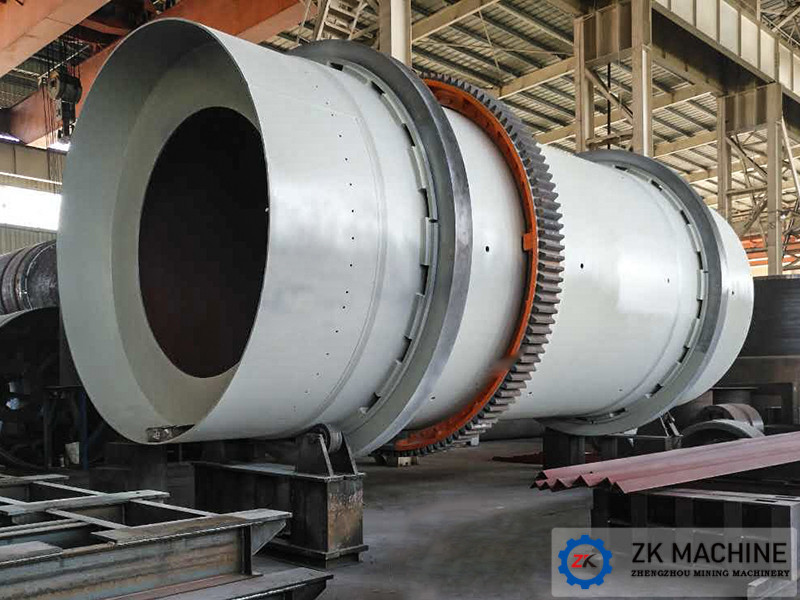

Drum Granulator Equipment Introduction:
The drum granulator is one kind of granulating equipment which was
trough the drum rotation to granulating the mixed material. The
drum granulator is widely used in construction material,
metallurgy, chemical industry and etc.
The Applications of Drum Granulation Equipment:
Any process that aggregates finely divided materials into larger
entities can be called a granulation process. In different
industries, this operation has different terms, such as
spheroidization, granulation, powder pressing, and so on. Although
pulverization can also make large materials into granular materials
with a certain size distribution, this is the reverse process of
granulation.
Drum Granulation Equipment Advantages:
(1) The granulating ratio of the machine is up to 70%. The small
part of feeding back material can be granulated again.
(2) The cylinder body adopts rubber plate lining structure which
makes it difficult for raw material to agglomerate.
(3) It can remove scars and peel burls automatically.
(4) It has the advantages of high intensity of granules, high
quality, corrosion-resistant, abrasion proof, low energy
consumption, long service lifespan, easy maintenance and operation,
etc.
Drum Granulation Equipment Specifications:
| Model | Cylinder | (kW) Power |
(mm) Overall Dimensions |
(m³) Volume | (r/min) Rotating Speed | Slope (°) |
| Ø1×6 | Ø1×6 | 5 | 3.5 | 5.5 | 6000×1358×2535 |
| Ø1×15 | Ø1×15 | 5 | 3.5 | 7.5 | 15000×1358×2535 |
| Ø1.2×15 | Ø1.2×15 | 5 | 3.5 | 15 | 15000×1558×2735 |
| Ø1.2×20 | Ø1.2×20 | 5 | 3.5 | 15 | 20000×1558×2735 |
| Ø1.5×10 | Ø1.5×10 | 5 | 3.5 | 15 | 10000×1858×3035 |
| Ø1.5×14 | Ø1.5×14 | 5 | 3.5 | 15 | 14000×1858×3035 |
| Ø1.5×18 | Ø1.5×18 | 5 | 3.5 | 18.5 | 18000×1858×3035 |
| Ø1.8×16 | Ø1.8×16 | 3-5 | 3.5 | 22 | 16000×1858×3035 |
| Ø1.8×20 | Ø1.8×20 | 3-5 | 3.5 | 22 | 20000×2158×3335 |
| Ø2.0×16 | Ø2.0×16 | 3-5 | 3 | 22 | 16000×3340×3420 |
| Ø2.0×20 | Ø2.0×20 | 3-5 | 3 | 30 | 20000×3340×3420 |
The Advantages of Drum Granulation Equipment:
1. Reduce material loss (such as powder compaction);
2. Reduce the harmfulness of irritating fine powder materials
(flaky caustic soda);
3. Increase the loose packing density of materials to facilitate
storage and transportation;
4. prevent the formation of solid blocks (fertilizer granulation);
5. Convenient to form a solid mixture (feed, sinter ore) without
west west blending;
6. Improve the appearance of the product and obtain the desired
structural shape (food, workpiece);
