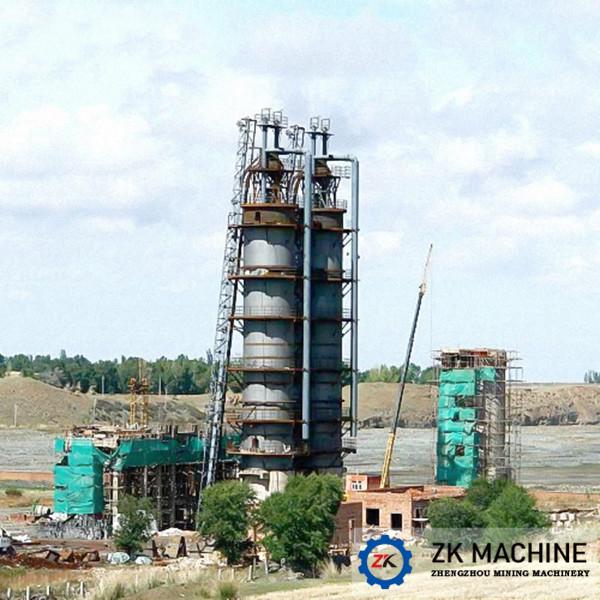

Small Scale Production Vertical Lime Shaft Kiln Gas Fired Lime
Vertical Kiln
Vertical Shaft Kiln Introduction:
Cement Shaft Kiln is used for calcination in cement plant. We offer 50 TPD to 300
TPD vertical shaft kiln on turnkey basis for Cement Plant. Cement
Shaft Kiln is modern day answer for cost effective production and a
boon for the developing countries. VSK is the advanced technology
available worldwide for small & medium entrepreneur.
Vertical Lime Shaft Kiln Our Advantages:
The vertical lime kiln manufactured by ZK group gains the
advantages such as, environmental protection, energy saving, high
machanization and automaticity.
1. Modern Technology: It adopts the modern technology, making full
use of energy, especially pollution gas ( such as conventer gas,
blast furnace gas, calcium carbide furnace tail gas) as the energy,
turning waste into wealth.
2. Environmentally Friendly: It protect the environment, and
produce the high quality lime with lowest cost. To use this new
technology enterprise, economic benefits have increased
significantly.
3. Minimum decrepitation of solid products and minumum erosion of
refrectory linings due to slight movement of particles relative to
each other
4. Less Cover Area: because the vertical kiln in vertical layout,
feeding use the single bucket elevator in high angle layout, each
functional area is decorated compact, greatly reduces the cover
area.
5. Energy Saving: The shell of kiln use four layer refractory in
vertical masonry, good effect of thermal insulation, the
temperature of shell will be controlled higher 60℃ than
environment, save energy remarkably.
6. Long service life of refractory. The material is not directly
crash the work surface of refractory, but its fraction with work
surface by gravity setting. Thus it greatly reduces the wear rate
of refractory, the refractory will be used in 6-10 years in
normally.
Vertical Shaft Kiln Technical Parameters:
| Technical Parameters Of Vertical Klin (Mixed Fuel) |
| Capacity(t/d) | Effective Volume | Effective Height | Effective Section | Limestone Size | Heat Consumption | CaO | Activity |
| (m3) | (m) | Dia.(m) | (mm) | (kJ/kg) | (%) | (mL) |
| 100 | 98 | 20 | Ø2.5 | 30~60/40~80 | <4600 | >90 | >300 |
| 120 | 141 | 20 | Ø3.0 | 30~60/40~80 | <4600 | >90 | >300 |
| 150 | 202 | 21 | Ø3.5 | 30~60/40~80 | <4500 | >90 | >300 |
| 200 | 301 | 24 | Ø4.0 | 30~60/40~80 | <4500 | >90 | >300 |
| 300 | 397 | 25 | Ø4.5 | 30~60/40~80 | <4400 | >90 | >300 |
| 400 | 491 | 25 | Ø5.0 | 30~60/40~80 | <4200 | >90 | >300 |
| 500 | 735 | 26 | Ø6.0 | 30~60/40~80 | <4200 | >90 | >300 |
| Remarks: All above data are for reference only. |
| | | | | | | | |
| Technical Parameters Of Vertical Lime Kiln (Fuel: Gas) |
| Capacity(t/d) | Effective Volume | Effective Height | Effective Section | Limestone Size | Heat Consumption | CaO | Activity |
| (m3) | (m) | Dia. or L×W(m) | (mm) | (kJ/kg) | (%) | (mL) |
| 50 | 70 | 20 | Ø2.0 | 30~60/40~80 | <4600 | >90 | >300 |
| 70 | 80 | 20 | Ø2.5 | 30~60/40~80 | <4600 | >90 | >300 |
| 80 | 100 | 20 | Ø2.5 | 30~60/40~80 | <4500 | >90 | >300 |
| 100 | 120 | 20 | Ø2.7 | 30~60/40~80 | <4500 | >90 | >300 |
| 120 | 140 | 20 | Ø3.0 | 30~60/40~80 | <4400 | >90 | >300 |
| 130 | 150 | 21 | Ø3.0 | 30~60/40~80 | <4200 | >90 | >300 |
| 150 | 200 | 20 | 2.5×4.5 | 30~60/40~80 | <4200 | >90 | >300 |
| Remarks: Above data are for reference only, and suitable for
Vertical Kiln which use low heat fuel. Utilization coefficient of
Vertical Kiln which use high heat fuel is higher. |
Vertical Lime Shaft Kiln Working Principle:
There are preheating zone, calcination zone, cooling zone from the
top to bottom of kiln inside. The cooling air blow into the cooling
zone from the bottom, though the heat transfer, the goods were
cold, and the cooling air was heated, then put into the calcination
zone with the heat for burning, thus reduce the energy consumption.
The flue gas from the fuel after calcination enter into the
preheating, make the material heat to pre-dissociation temperature.
The flue temperature fall to 170-300℃, then come out from the kiln.
In order to guarantee the quality and capacity of lime, finalize
the fully automatic production during the production, the special
and main equipment for the kiln as follows:
There are preheating zone, calcination zone, cooling zone from the
top to bottom of kiln inside. The cooling air blow into the cooling
zone from the bottom, though the heat transfer, the goods were
cold, and the cooling air was heated, then put into the calcination
zone with the heat for burning, thus reduce the energy consumption.
The flue gas from the fuel after calcination enter into the
preheating, make the material heat to pre-dissociation temperature.
The flue temperature fall to 170-300℃, then come out from the kiln.
In order to guarantee the quality and capacity of lime, finalize
the fully automatic production during the production, the special
and main equipment for the kiln as follows:
There are preheating zone, calcination zone, cooling zone from the
top to bottom of kiln inside. The cooling air blow into the cooling
zone from the bottom, though the heat transfer, the goods were
cold, and the cooling air was heated, then put into the calcination
zone with the heat for burning, thus reduce the energy consumption.
The flue gas from the fuel after calcination enter into the
preheating, make the material heat to pre-dissociation temperature.
The flue temperature fall to 170-300℃, then come out from the kiln.
In order to guarantee the quality and capacity of lime, finalize
the fully automatic production during the production, the special
and main equipment for the kiln as follows.
