300 Ton Per Day Caco3 Calcination Horizontal Rotary Kiln
Introduction

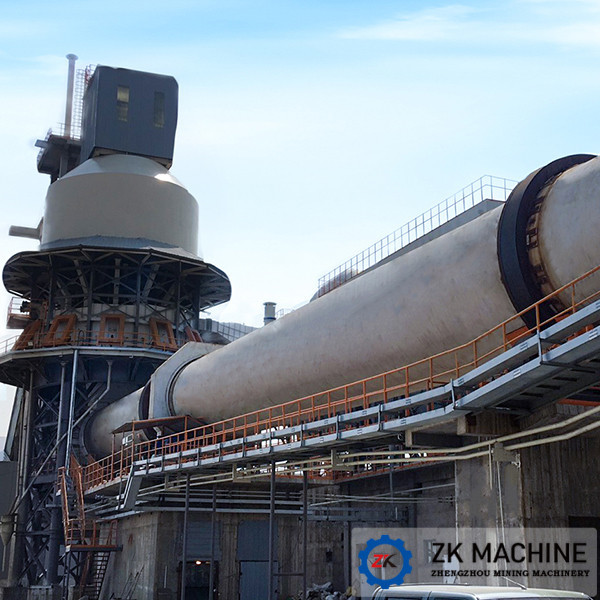

Shanxi Xiaoyi 200,000 t/a activated calcium oxide production line
was originally designed by a company in Beijing. However, during
the cooperation, the owner found that the design was not
professional, the process was cumbersome, and a lot of useless work
took much time. After careful consideration, the owner chose ZK
Corp to redesign and supply.
For the owner, it takes a lot of courage to redesign the project
after half process of the construction, because a lot of sunk costs
have been invested. In order to reduce the loss of the owner, the
engineers of ZK Corp fully took advantage of the original building
and terrain features on the site. While adjusting the production
process, the original useless buildings and terrain were cleverly
integrated into the new scheme, and the equipment was
scientifically rational The layout not only greatly simplifies the
production process, the equipment layout is also very compact, and
the second design and construction are realized on the limited
land, which not only meets the customer's process requirements, but
also saves land costs and production costs.
Specifications:
| Capacity | 200t/d | 225t/d | 250t/d | 300t/d | 400t/d | 500t/d | 600t/d | 800t/d |
| Preheater | Shape | Hexagon | Hexagon | Octagon | Octagon | Octagon | Decagon | Dodecagon | Dodecagon |
Qty. Of Top Silo | 6 | 6 | 8 | 8 | 8 | 10 | 12 | 12 |
| Qty. Of Hydraulic Pusher | 6 | 6 | 8 | 8 | 8 | 10 | 12 | 12 |
| Preheating Capacity (t) | 600 | 600 | 800 | 800 | 800 | 1000 | 1600 | 1600 |
| Rotary Kiln | Size | Φ2.8×42m | Φ3.0×50m | Φ3.2×50m | Φ3.3×55m | Φ3.6×55m | Φ3.8×58m | Φ4×60m | Φ4.3×56m |
| Slope | 3.50% | 3.50% | 3.50% | 3.50% | 3.50% | 3.50% | 3.50% | 3.50% |
Rotating Speed (r/min) | 0.3-1.8 | 0.3-1.8 | 0.3-1.8 | 0.3-1.8 | 0.3-1.8 | 0.3-1.8 | 0.3-1.8 | 0.3-1.8 |
Calcination Temperature (℃) | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 |
| Cooler | Type | Vertical | Vertical | Vertical | Vertical | Vertical | Vertical | Vertical | Vertical |
| Qty Of Temperature Control Area | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
Qty. Of Wind Tower | 4+1 | 4+1 | 4+1 | 4+1 | 4+1 | 4+1 | 4+1 | 4+1 |
| Size(m) | 3.6×3.6 | 3.6×3.6 | 3.6×3.6 | 3.6×3.6 | 4.1×4.1 | 4.1×4.1 | 4.1×4.1 | 4.7×4.7 |
Output Temperature (℃) | ≤120 | ≤120 | ≤120 | ≤120 | ≤120 | ≤120 | ≤120 | ≤120 |
| Product Thermal Loss(kcal/kg) | 5500 | 5400 | 5400 | 5400 | 5400 | 5400 | 5400 | 5000 |
| Available Fuel | Coke oven gas, mixed gas, natural gas, coal powder, low heating
value coal gas |
The service scope of ZK Corp includes the following contents:
limestone raw material storage and transportation screening system,
preheating calcination cooling system, finished product storage and
transportation system, coal powder preparation system,
environmental dust removal system, tail gas dust removal
desulfurization deodorization system, circulating water system
One-stop technical services including process design of electrical
automation control system, plant planning, equipment supply,
equipment installation and commissioning, after-sales training,
etc.
This project adopts the advanced production technology of
continuous closure between the United States and Italy, which
greatly improves the efficiency of the use of raw materials. It not
only reduces the energy consumption, reduces the emission of smoke
and dust, but also reduces the production cost of the enterprise,
so as to meet the production requirements of energy saving,
environmental protection, and good activity. Various economic and
technical indicators are at the leading level in the same industry
in the country.
