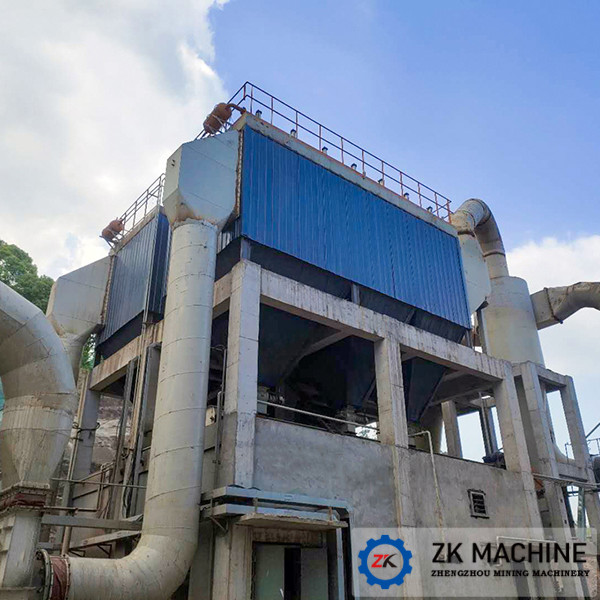

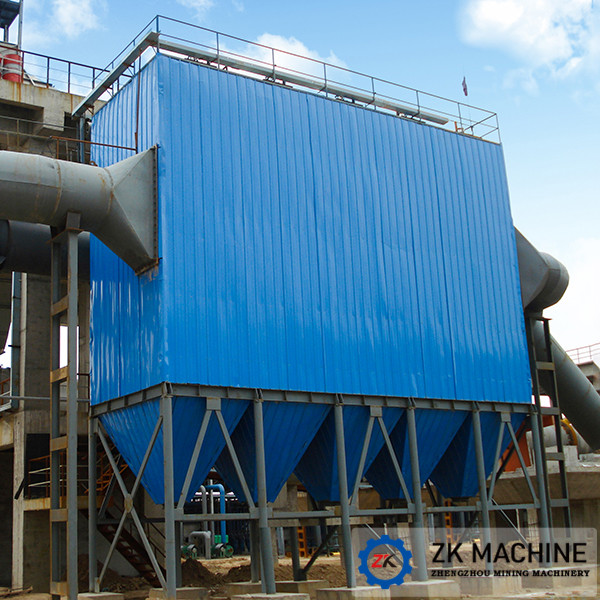

High Collection Efficiency ZM Series Single Pulse Bag Filter / Dust
Collector
Introduction:
With the development of bag filter technology and the increasing
requirements of environmental protection, the application range of
bag filter is becoming more and more extensive. At present, bag
filter can be used to deal with high temperature, high humidity,
adhesion, explosion, abrasive smoke gas, and even filtering air
containing ultra-fine dust.
Our company can provide design, manufacture, and installation
one-stop service for bag filter. Our product range mainly include
bag filter, single bag filter, pulse bag filter, mechanical reverse
air bag filter, wet bag filter and bag filter parts.
Working Principle of the Bag Filter:
The dust-containing gas enters the filter chamber from the open
flange, and the coarse particles fall directly into the ash bin.
The dust-containing gas is filtered by the filter bag, the dust is
retained on the bag surface, and the clean gas passes through the
bag mouth to the clean room, it is discharged into the atmosphere
by the fan. When the dust on the surface of the filter bag
continues to increase, the program controller starts to work, and
the pulse valves are opened one by one to make the compressed air
blow through the nozzle to clean the filter bag, which causes the
filter bag to expand suddenly. The dust quickly leaves the filter
bag and falls into the ash bin, and the dust is discharged by the
ash discharge valve.
Advantages of Bag Filter:
1. Reliable design ensures the bag filter stable and long-term
operation with the other main equipment and little maintenance.
2. Optimized duct design will be in favor of uniform air
distribution.
3. Air leakage prevention design ensures the lowest air leak rate
for the bag filter.
4. Steel sub-structure design, which would be easy for transport
and installation of the equipment.
5. Low operating costs. Optimized design of process parameters is
conducive to efficient and stable operation of the bag filter with
low resistance, reducing energy consumption, as well as the loss of
the bag.
Specifications:
| Kiln type | Air volume(m3) | Filtration velocity (m/min) | Filter area(m2) | Equipment resistance(pa) | Bag size(mm) | Bag quantity | Cleaning method |
| ZM100 | 6000-7200 | 1-1.2 | 100 | 1200 | Φ130 | 100 | pulse cleaning |
| ZM120 | 7200-8840 | 1-1.2 | 120 | 1200 | Φ130 | 100 | pulse cleaning |
| ZM150 | 8000-10800 | 1-1.2 | 150 | 1200 | Φ130 | 100 | pulse cleaning |
| ZM200 | 12000-14400 | 1-1.2 | 200 | 1200 | Φ130 | 200 | pulse cleaning |
| ZM250 | 15000-18000 | 1-1.2 | 250 | 1200 | Φ130 | 200 | pulse cleaning |
| ZM300 | 18000-36000 | 1-1.5 | 300 | 1200 | Φ130 | 200 | pulse cleaning |
| ZM350 | 21000-42000 | 1-1.5 | 350 | 1200 | Φ130 | 200 | pulse cleaning |
| ZM400 | 24000-48000 | 1-1.5 | 400 | 1200 | Φ130 | 200 | pulse cleaning |
| ZM450 | 27000-54000 | 1-1.5 | 450 | 1200 | Φ130 | 200 | pulse cleaning |
