High Grinding Efficiency Continuous Ball Mill Machine Low Maintenance Costs Space Saving

Introduction:

In the continuous type Ball Mill, the material is being fed from the one end through its hollow shaft, while the crushed material comes out from the hollow shaft, at the other end. Usually continuous Mills are used when the production rate is required to be high.

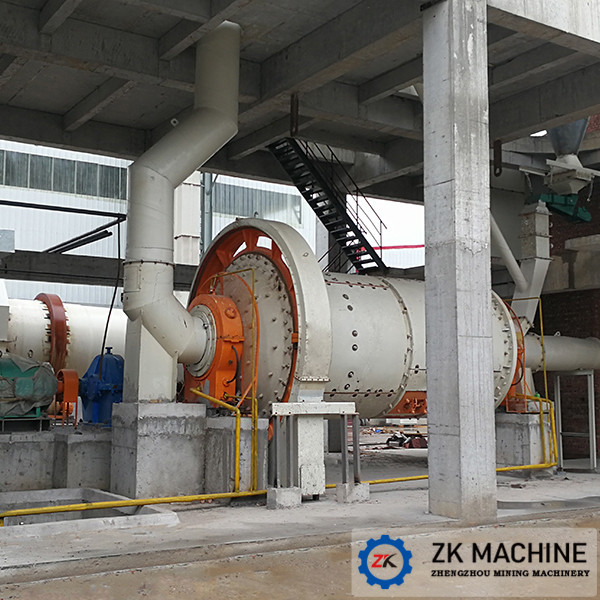

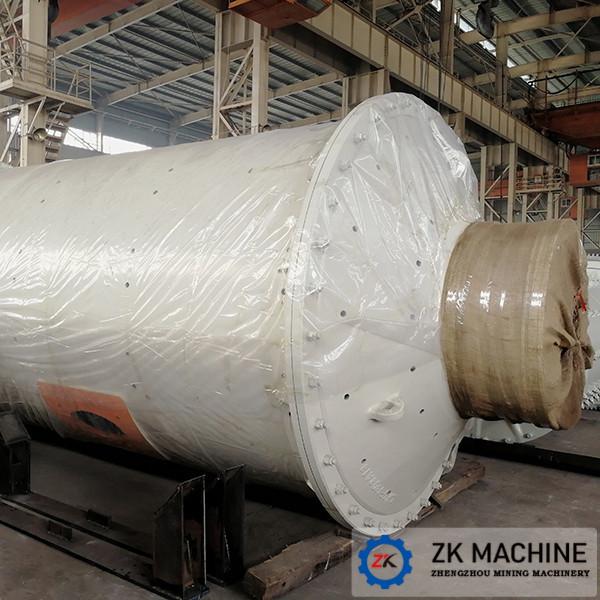

The ball mill is composed of a horizontal cylinder, a hollow shaft for feeding and discharging materials, and a grinding head. The cylinder is a long cylinder. The cylinder is equipped with an abrasive body. The cylinder is made of steel plate. A steel lining plate is fixed to the cylinder. The abrasive body generally, it is a steel ball, and it is loaded into the cylinder according to different diameters and a certain proportion. The grinding body can also be used in the steel section. The material is selected according to the particle size of the grinding material. The material is loaded into the barrel by the hollow shaft at the feed end of the ball mill. When the barrel of the ball mill rotates, the grinding body is attached to the barrel lining plate due to the inertia and centrifugal force and friction. Taken away by the cylinder, when brought to a certain height, it is thrown down due to its own gravity. The falling abrasive body crushes the material in the cylinder like a projectile.

Working Principle:
The ball mill is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball. After the secondary grinding, material is discharged from the discharging mouth. Then the whole grinding process is ended.

Ball Mill Features:

1. High grinding efficiency and low energy consumption;
2. The product fineness is uniform and the product is smooth;
3. Low vibration, low noise, good sealing of the equipment, no dust overflow, clean environment, meet national environmental protection requirements;
4. The special cement mill can be designed and manufactured according to the different demands of users on the fineness and output of grinding.

Technical Specifications:

Henan Zhengzhou Mining Machinery Co., Ltd. (ZK Corp) was established in 1956. The company is committed to providing innovative technology equipment and solid waste and hazardous waste recycling solutions for many countries and regions around the world. After more than 60 years of development, it has become a comprehensive modern enterprise, covering an area of 76,000 square feet and a building area of 43,000 square feet. ZK Corp now has 6 modern workshops, 4 heavy equipment workshops, 1 municipal R&D center, 1 provincial technology research center (industrial solid waste disposal equipment technology research center), including more than 300 large and medium-sized processing equipment set. ERP business services include scientific research, design, development, manufacturing, transportation, installation, testing and training.
