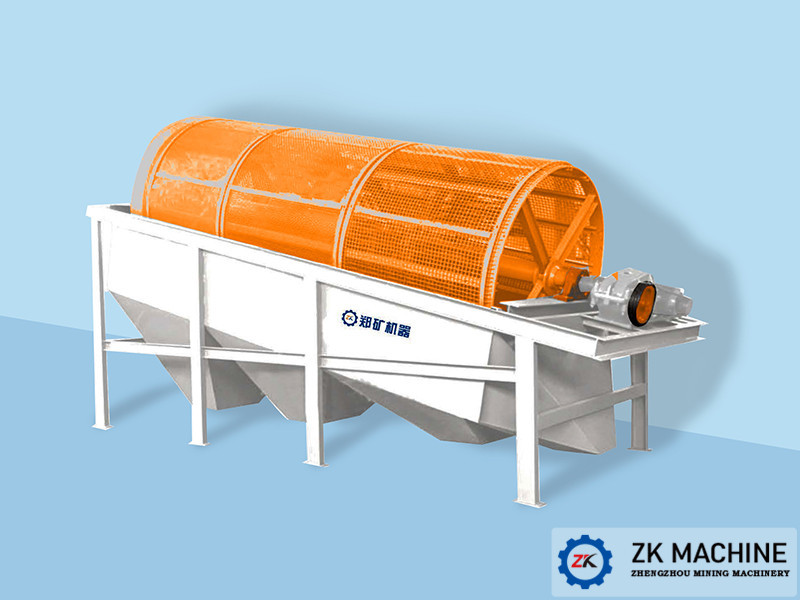

GTS Series Trommel Screen, Reliable Operation Rotary Drum Sieve
Introduction:
Rotary screen is a new generation of screen equipment, mainly
composed of import and export, motor, reducer, frame, drum device,
etc., which can be used in chemical industry, coking plant, mine,
power plant, building materials, metallurgy and other industries.
The roller device is installed on the frame obliquely, and the
outer part is sealed by the seal isolation cover to prevent
pollution.
Our Advantages:
Trommel (Rotary Rrum ) Screen is widely used in quarry, coal
industry, chemical, mineral-selecting industry, metallurgy,
construction and other industries. It have advantages that they are
proficient in wet applications as well as dry and the lifting and
dropping action will enhance separation.
1. Designed to fit your operation- Trommel screen can be customized
to meet different capacity and working site;
2. Free from pollution- Fully enclosed structure,no dust
pollution,improve working conditions for operators as well;
3. Variable application
range-Compost,chemical,coal,plastic,recycling,metallurgy,mineral-selecting
etc;
4. Superior design-Simple structure,easy maintenance,steady
operation,low energy consumption.
Working Principle:
When the rotary screen works, the motor connects the reducer with
the roller device through the coupling, and drives the roller
device to rotate around its axis. The rotary screen is a mechanical
method, which is composed of several parallel screen bars to form a
screen surface. After the materials are put into the drum device,
due to the inclination and rotation of the drum device, the
materials are turned and rolled. The materials are screened out one
by one through the screens of different mesh purposes, and the
materials stuck in the screen holes can also be ejected to prevent
blocking.
Specifications:
| Model | Capacity
(t) | Output
(t/h) | Diameter
(mm) | Length
(m) | Powder
(kw) |
| GTS-3 | 30000 | 10.4 | Φ1200 | 3.5 | 4 |
| GTS-5 | 50000 | 13.8 | Φ1200 | 4 | 5.5 |
| GTS-10 | 100000 | 27.8 | Φ1400 | 5 | 7.5 |
| GTS-15 | 150000 | 47.7 | Φ1500 | 6 | 11 |
