Widely Used In Construction Material Drum Granulator Equipment
Simple Structure Long Service Life
Drum Granulator Equipment Introduction:
The drum granulator is one kind of granulating equipment which was
trough the drum rotation to granulating the mixed material. The
drum granulator is widely used in construction material,
metallurgy, chemical industry and etc.
Application of Rotary Drum Granulator:
As the one of the key equipments in fertilizer industry, rotary
drum granulator is applicable to cold/heat granulation and big
scale fertilizer production of high, medium and low consistency.
We offer various configurations to suit your fertilizer processing
needs, whether organic, or inorganic.
Our Advantages:
This kind of granulator has serval features such as high
efficiency, high rate of finished product, simply structure, sturdy
and durable, convenient opeation and maintenance, etc.
1. It is built to the highest quality standards, and backed by over
60 years of experience in serving the fertilizer industry.
2. High rate of finished product, simply structure, high
efficiency.
3. Convenient operation and maintenance, sturdy and durable.
4. ZK drum granulators are custom designed to suit your fertilizer
processing needs.
Working Principle:

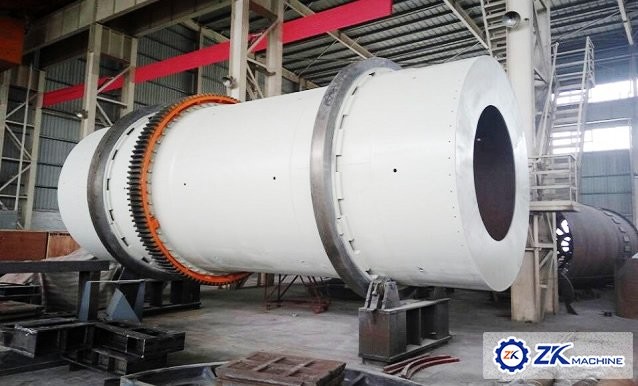

The drum granulator is composed of under frame, cyclinder, driving
device, support & catch roller, coupling shaft etc. The chain wheel
drive support & catch roller by reducer at working, the inclined
cycliner slow rotating by support & catch roller under the friction
force, the mixed material risen through the cycliner wall by
friction force and centrifugal force, then rolling down by gravity.
It will rolling into a ball by relative movement betwenn the
rolling down material and rising material, the balls moving to the
lower side from higher side along cycliner axis when the balls
rolling along the circumference, then the final grain discharged at
lower side.
Specifications:
| Model | Cylinder | (kW) Power |
(mm) Overall Dimensions |
(m³) Volume | (r/min) Rotating Speed | Slope (°) |
| Ø1×6 | Ø1×6 | 5 | 3.5 | 5.5 | 6000×1358×2535 |
| Ø1×15 | Ø1×15 | 5 | 3.5 | 7.5 | 15000×1358×2535 |
| Ø1.2×15 | Ø1.2×15 | 5 | 3.5 | 15 | 15000×1558×2735 |
| Ø1.2×20 | Ø1.2×20 | 5 | 3.5 | 15 | 20000×1558×2735 |
| Ø1.5×10 | Ø1.5×10 | 5 | 3.5 | 15 | 10000×1858×3035 |
| Ø1.5×14 | Ø1.5×14 | 5 | 3.5 | 15 | 14000×1858×3035 |
| Ø1.5×18 | Ø1.5×18 | 5 | 3.5 | 18.5 | 18000×1858×3035 |
| Ø1.8×16 | Ø1.8×16 | 3-5 | 3.5 | 22 | 16000×1858×3035 |
| Ø1.8×20 | Ø1.8×20 | 3-5 | 3.5 | 22 | 20000×2158×3335 |
| Ø2.0×16 | Ø2.0×16 | 3-5 | 3 | 22 | 16000×3340×3420 |
| Ø2.0×20 | Ø2.0×20 | 3-5 | 3 | 30 | 20000×3340×3420 |
