Widely Used Dry Ball Mill Less Abrasion And Long Service Life With
Manufacturer Price

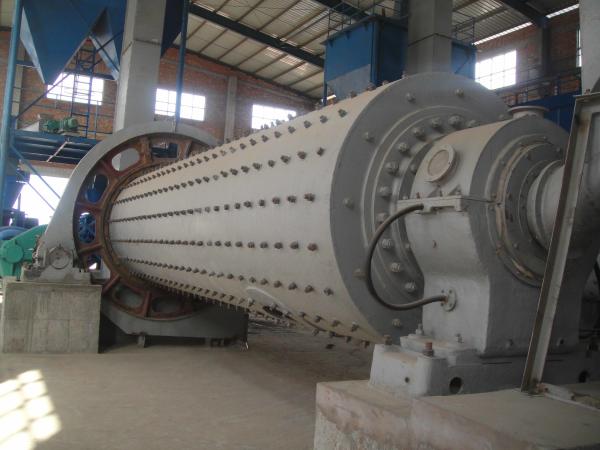

Dry Ball Mill Introduction:
Dry ball mill, also known as dry type ball mill, is a kind of high
efficient equipment for grinding material, which playing an
important role in the beneficiation production line. It can be used
for metal, non-ferrous metals and ferrous metals processing. Due to
the excellent quality, it has a long working life.
The Advantages of Ball Mills:
1. Can be used for open-flow grinding, also applied to the
circle-flow grinding equipped with separator.
2. Dry ball mill has the characteristics, such as wide adaptability
to the material, continuous production, easy speed control,
fineness grinding.
3. The moisture of feeding material cannot be high, otherwise it
will appear the problem, such as bonding, poor discharge etc.
4. Dry ball mill outlet is straight, and also is equipped with an
induced draft device.
Working Principle:
Dry process ball mill machine is mainly used in the finished
products of cement plant and raw materials grinding, but also for
metallurgy, chemical, power and other various ores and other
grindable materials. It requires the dry material, which mostly
used for the material like cement, silicate products, new building
materials, refractory materials, fertilizers, black and non-ferrous
metal beneficiation, glass ceramics and other production
industries.
Specifications:
| Model | Revolving Speed | Ball Loading | Feeding Size | Feedout Size | Power | Weight |
| (r/min) | (t) | (mm) | (mm) | (kw) | (t) |
| Ф900×1800 | 36-38 | 1.5 | ≤20 | 0.075-0.89 | 18.5 | 5.85 |
| Ф1200×2400 | 36 | 3 | ≤25 | 0.075-0.6 | 30 | 13.6 |
| Ф1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 37 | 14.3 |
| Ф1500×3000 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 75 | 19.5 |
| Ф1500×4500 | 27 | 11 | ≤25 | 0.074-0.4 | 110 | 22 |
| Ф1830×3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 130 | 34.5 |
| Ф1830×7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 245 | 43.8 |
| Ф2100×3000 | 23.7 | 15 | ≤25 | 0.074-0.4 | 155 | 45 |
| Ф2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 280 | 59.5 |
| Ф2200×4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 280 | 54.5 |
| Ф2200×7500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 380 | 64.8 |
| Ф2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 245 | 58 |
| Ф2700×4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 380 | 95 |
| Ф3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | 630 | 149 |
| Ф3600×4500 | 17 | 90 | ≤25 | 0.074-0.4 | 850 | 169 |
| Ф3600×8500 | 18 | 131 | ≤25 | 0.074-0.4 | 1800 | 260 |
| Ф4000×5000 | 16.9 | 121 | ≤25 | 0.074-0.4 | 1500 | 230 |
| Ф4000×6700 | 16.9 | 149 | ≤25 | 0.074-0.4 | 1800 | 249 |
