Φ1500×3000-Φ2500×3900 Air Swept Coal Mill Highly Efficient Large
Capacity
Air Swept Coal Mill Introduction:
Coal Mill (Air Swept Coal Mill) is an ideal coal processing
equipment that can both grind and dry, with characteristics of high
efficiency, energy saving, environmental protection, 8% and above
of its grinding coal can pass through the 200 mesh screen, and the
water content can be under 2%.
The most widely used in the classification of mills, and the most
classic is the ball mill. Ball grinding mill (ball grinding mill)
is the key equipment for crushing materials and then crushing. It
is mainly used in cement, silicate products, new building
materials, refractory materials, fertilizers, ferrous and
non-ferrous metal beneficiation and glass ceramics production
industries. The ball mill can be divided into two types: lattice
type and overflow type according to different ore discharging
methods. It can be divided into dry and wet grinding methods. It is
suitable for grinding various ores and other materials, and is
widely used in mineral processing, building materials and chemical
industry. And other industries.
Ball Mill Structural Features:

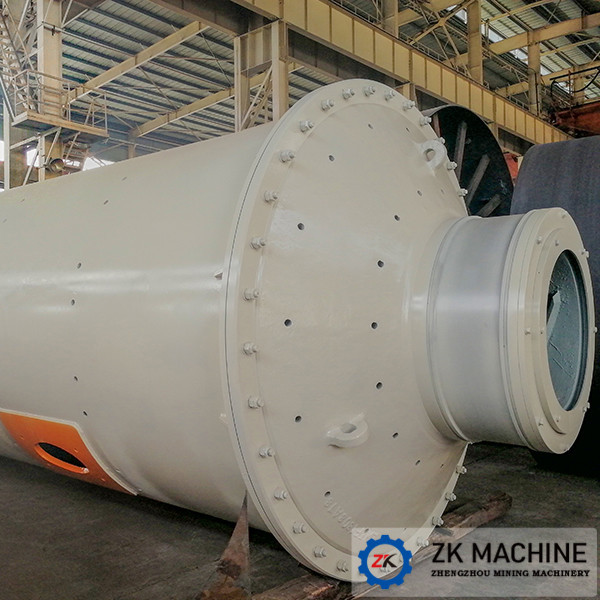

The ball mill consists of feeding mouth, material discharging
mouth, rotary part, transmission part (reducer, small transmission
gears, engine, and electric control) and other major parts. The
hollow shaft is made of cast steels, with changeable internal
lining board. The big rotary gear is fabricated with the casting
gear hobbing, with the resisting lining board in the cylinder,
which is highly abrasion-resistant. This machine operates smoothly
and reliably .
Air Swept Coal Mill Specifications:
| Spec(mm) | Capacity(t/h) | Rotating Speed(r/min) | Grinding Medium(t) | Motor | Reducer | Weight(t) |
| Model | Power(kw) | Model | Speed Ratio |
| Φ1500×3000 | 2～3 | 29.2 | 6.5 | JR125-8 | 95 | ZD35-6 | 3.55 | 19.5 |
| Φ1700×2500 | 3～5 | 24.32 | 8 | JR116-6 | 95 | ZD40-8 | 4.481 | 23.1 |
| Φ2200×3000 | 5～6 | 22 | 13 | JR147-8 | 200 | ZD50-9 | 5 | 32.8 |
| Φ2400×4750 | 2～3 | 20.4 | 22 | YR4001-8 | 280 | ZD60-8 | 4.481 | 48.9 |
| Φ2500×3900 | 3～5 | 20.89 | 24 | YR5002-8 | 315 | ZD60-8 | 4.481 | 47.3 |
