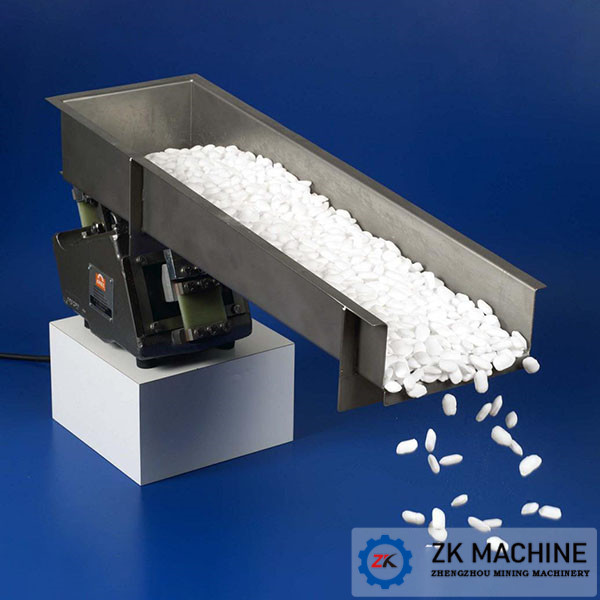

GZJ Series Electromagnetic Vibrating Feeder, Automatic Control The
Production Process
Introduction
GZJ series electromagnetic vibrating feeder is widely used in
various industries such as mining, metallurgy, coal, building
materials, light industry, chemical industry, electric power,
machinery, food, etc., Lump, granular and powdery materials are
uniformly and continuously or quantitatively fed from the storage
bin or funnel to the receiving device. For example, feeding belt
conveyors, bucket elevators, screening equipment, crushing
equipment, mixing equipment, grinding equipment, etc., feeding to
crushers,pulverizer, etc., as well as for automatic batching,
quantitative packaging, etc. And can be used in the process of
automatic control to realize the automation of the production
process.
Vibrating Feeder Application:
1. Small size, light weight, simple structure, small space
occupation, low noise, low energy consumption, easy installation,
no rotating parts without lubrication, simple operation, convenient
maintenance, low operating cost and low maintenance cost;
2. Due to the use of the resonance principle of mechanical
vibration, the double mass works in a low critical near resonance
state, so the power is small, the energy efficiency is high, the
power consumption is low, and the use cost is saved;
3. The amplitude is large, which overcomes the disadvantage of
difficult conveying of powdery and viscous materials.
4. Since the material flow can be changed and opened and closed
instantaneously, the feeding amount has high precision, the
position of the feeding point is well controlled, and the precision
is high;
Our Advantages:
1. Advanced vibration mechanism with low energy consumption because
of working on low critical near resonance state;
2. Adopt Silicon controlled rectifier half-wave rectifier control
method, when operating, automatic control can be realized by adjust
the development angle of silicon controlled.
3. Due to the instantaneous change or opening and closing for
material flow, the feeding volume with high accuracy.
4. When operating, material will been throw up continuous, then
jumping forward with parabolic trajectory, so that have less
abrasion to screen cell.
5. Widely application, alloy screen cell feeder can used for
conveying wear and corrosive materials, sealing structure feeder
can used for high pollution and easy to dust material.
6. Feeder with features like small overall size, light weight,
simple structure, no need lubrication and easy to maintenance.
Vibrating Feeder Specification:
| Model | Capacity(t/h) | Max Feed Size(mm) | Motor Power(kw) |
| Level | -10° |
| GZ1 | 5 | 7 | 50 | 0.06 |
| GZ2 | 10 | 14 | 50 | 0.15 |
| GZ3 | 25 | 35 | 75 | 0.2 |
| GZ4 | 50 | 70 | 100 | 0.45 |
| GZ5 | 100 | 140 | 150 | 0.65 |
| GZ6 | 150 | 210 | 200 | 1.5 |
| GZ7 | 250 | 350 | 250 | 3 |
| GZ8 | 400 | 560 | 300 | 4 |
| GZ9 | 600 | 840 | 350 | 5.5 |
