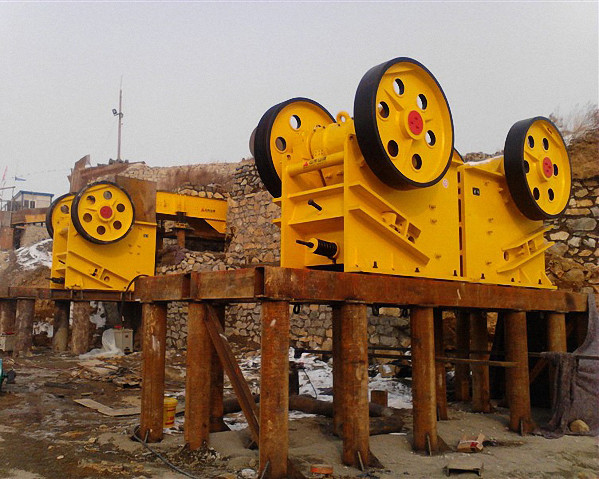

Jaw crusher,stone crusher plant equipment introduction
Jaw crusher is a large kind of complex tilting crushing equipment, and it is
mainly used for crushing medium hard ore and rock whose compression
strength is no more than 250MPa, and with the quality of large
crushing ratio, high yield, uniform particle size, reliable, easy
to maintain and low operating cost, it is widely used in mining,
metallurgy, construction, roads, railways, water conservancy,
chemical industry and etc.
PE series jaw crusher is used for coarse crushing different kinds
of ores and rocks, and PEX series jaw crusher is used for
intermediate and fine crushing.
Application of Jaw Crusher,Stone Crusher:
Be applied in large block of material crushing in mining industry,
metallurgical industry, construction industry, highway, railway,
water, and chemical industry.
Structure
PE, PEX series jaw crusher is mainly consist of frame, eccentric
shaft, pulley, side guard plate, bracket, discharging gate
adjusting device, fixed jaw plate, movable jaw plate, safety device
and etc. And its main structural features are as following:
1. Frame
It mainly is consist of side panels, front box assembly, rear box,
and etc;
2. Eccentric Shaft Rotating Part
It mainly is consist of movable jaw, eccentric shaft, bearings,
bearing pedestal, belt pulleys and etc., and it is the major part
for dynamic transmission;
3. Crushing Cavity Working Part
It mainly is consist of fixed jaw plate, movable jaw plate, side
liners, guard board and etc., and it is the working parts for
breaking materials;
4. Safety Device
It is consist of bracket, bracket base, spring, spring rod and
etc., and it is the parts that play a security role during crusher
works in an abnormal condition.
5. Discharging Gate Adjusting Device
It is mainly consist of adjusting fixed ramp, adjusting sliding
ramp, top wire bolt, slide locking lever, and etc., it is used to
adjust the size of the discharging gate and to control the
discharging particle size.
Stone Crusher OUR ADVANTAGE
1. Jaw plates is made of high strength steel, one time shape
casting, and with characteristics of wear resistant, compression
resistance, and long life;
2. High productivity, large crushing ratio, uniform product size,
low power consumption
3. Gasketed discharging adjusting device, reliable and convenient,
large adjustment range, equipment flexibility is increased.
4. Simple structure, reliable operation and low operating costs,
safe lubrication system, and easy parts replacing.
Stone Crusher Specifications
| Model | Inlet Size(mm) | Max feeding size(mm) | Adjusting Range of Discharging outlet(mm) | Capacity(m³/h) | Power(kW) | Weight(t) | |
|
| PE-250×400 | 250×400 | 210 | 20～60 | 3～13 | 15 | 2.8 | |
| PE-400×600 | 400×600 | 340 | 40～100 | 10～35 | 30 | 6.5 | |
| PE-500×750 | 500×750 | 425 | 50～100 | 25～60 | 55 | 10.6 | |
| PE-600×900 | 600×900 | 500 | 65～180 | 30～85 | 55～75 | 15.5 | |
| PE-750×1060 | 750×1060 | 630 | 80～180 | 72～150 | 90～110 | 28 | |
| PE-800×1060 | 800×1060 | 680 | 100～200 | 85～143 | 90～110 | 30 | |
| PE-870×1060 | 870×1060 | 750 | 170～270 | 145～235 | 90～110 | 30.5 | |
| PE-900×1060 | 900×1060 | 780 | 200～290 | 170～250 | 90～110 | 31 | |
| PE-900×1200 | 900×1200 | 780 | 95～255 | 100～240 | 110～132 | 49 | |
| PE-1000×1200 | 1000×1200 | 850 | 195～280 | 190～275 | 110～132 | 51 | |
| PE-1200×1500 | 1200×1500 | 1020 | 150～300 | 250～500 | 160 | 100.9 | |
| PEX-150×500 | 150×500 | 120 | 10～40 | 3～15 | 11 | 2.5 | |
| PEX-150×750 | 150×750 | 120 | 10～40 | 5～16 | 18.5 | 3.5 | |
| PEX-250×750 | 250×750 | 210 | 15～50 | 8～35 | 30 | 5.8 | |
| PEX-250×1000 | 250×1000 | 210 | 15～50 | 13～45 | 37 | 6.4 | |
| PEX-250×1200 | 250×1200 | 210 | 15～50 | 13～50 | 37 | 7.7 | |
| PEX-300×1300 | 300×1300 | 250 | 15～50 | 20～60 | 75 | 11 | |
