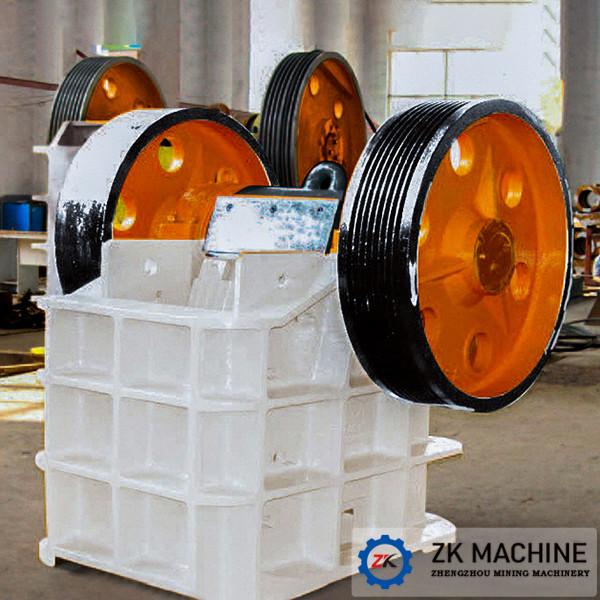

Equal Product Graularity Small Jaw Stone Crusher For Primary /
Secondary Crushing
Introduction:
Jaw crusher is a large kind of complex tilting crushing equipment, and it is
mainly used for crushing medium hard ore and rock whose compression
strength is no more than 250MPa, and with the quality of large
crushing ratio, high yield, uniform particle size, reliable, easy
to maintain and low operating cost, it is widely used in mining,
metallurgy, construction, roads, railways, water conservancy,
chemical industry and etc. PE series is used for coarse crushing
different kinds of ores and rocks, and PEX series is used for
intermediate and fine crushing.
Processing materials: various rocks, ores, limestone, construction waste, etc., used in
the crushing of bulk materials in metallurgy, building materials,
mining, highway, mineral processing and other industries.
Application:
Jaw Crushers is applied in large block of material crushing in mining industry,
metallurgical industry, construction industry, highway, railway and
chemical industry.
ADVANTAGES:
1. High quality: Unique jaw head structure sealed guarantee extend
bearing life.
2. Deep cavity broken: High crushing ratio, even output
granularity.
3. High strength: The crusher has large capacity and big stength.
4. High bearing capacity: The bearing pedestal adopts unitary cast
steel structure.
5. Outlet easy operation: More advanced movable jaw assembly makes
it more durable.
6. Unique flywheel design: Effecively reduce the vibration the
machine running more smoothly.
MODELS
| Model | Feed Inlet Size (mm) | Max Feed
Size (mm) | Discharge Size Range (mm) | Capacity
(m3/h ) | Motor Power
(kw) |
| PE-250x400 | 250x400 | 210 | 20-60 | 3-13 | 15 |
| PE-400x600 | 400x600 | 340 | 40-100 | 10-35 | 30 |
| PE-500x750 | 500x750 | 425 | 50-100 | 25-60 | 55 |
| PE-600x900 | 600x900 | 500 | 65-180 | 30-85 | 55-75 |
| PE-750x1060 | 750x1060 | 630 | 80-180 | 72-150 | 90-110 |
| PE-800x1060 | 800x1060 | 680 | 100-200 | 85-143 | 90-110 |
| PE-870x1060 | 870x1060 | 750 | 170-270 | 145-235 | 90-110 |
| PE-900x1060 | 900x1060 | 780 | 200-290 | 170-250 | 90-110 |
| PE-900x1200 | 900x1200 | 780 | 95-255 | 100-240 | 110-132 |
| PE-1000x1200 | 1000x1200 | 850 | 195-280 | 190-275 | 110-132 |
| PE-1200x1500 | 1200x1500 | 1020 | 150-300 | 250-500 | 160 |
| PEX-150x500 | 150x500 | 120 | 10-40 | 3-15 | 11 |
| PEX-150x750 | 150x750 | 120 | 10-40 | 5-16 | 18.5 |
| PEX-250x750 | 250x750 | 210 | 15-50 | 8-35 | 30 |
| PEX-250x1000 | 250x1000 | 210 | 15-50 | 13-45 | 37 |
| PEX-250x1200 | 250x1200 | 210 | 15-50 | 13-50 | 37 |
| PEX-300x1300 | 300x1300 | 250 | 15-50 | 20-60 | 75 |
