Concrete Belt Conveyor High Efficiency Strong Structure With
Electric Roller
Concrete Belt Conveyor Price Introduction:

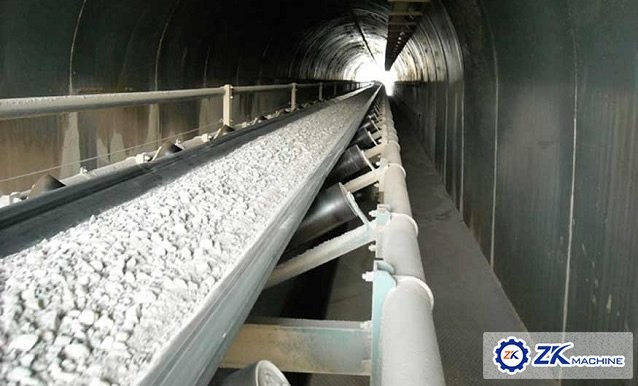

Belt conveyor is a kind of machinery that can transfer the material
continuously by friction drive.According to different transport
requirements, the transport system can be single belt conveyor or
consist of several conveyors or be combined with other conveying
equipment.
Running machine belt can be installed horizontally or aslant to
meet the needs of different production lines.
Mobile belt conveyor is mostly applied to port, jetty, mining,
warehouse, and construction site for moving bagged cargo and bulk
materials.
Belt Conveyor Product Features:
1. With electric roller, it is the continuously running belt
conveyor for bat guano fertilizer.
2. With motor power and strong carbon steel frame, it is the high
capacity belt conveyor machine for guano fertilizer loading the
truck with best price.
3. With the features of mobile and telescopic, it is suitable
loading and unloading belt conveyor with factory direct sell price.
4. High accurate steel pipes ensure the rollers/idlers running with
low vibration and less noise.
Features:
1. The belt conveyor can be operated in the circumstance
temperature range from -20°C to 40°C.
2. The conveying distance of the mobile belt conveyor can be
designed according to customers' demands. Strong adaptability to
conveying line.
3. It can be used in the operation line with different types of
work.
4. Belt conveyor is suitable for conveying various bulk materials,
lump materials, chemicals, raw materials and concretes and so on.
5. Many components can be capable of standard manufacture and
assembly as required.
Specifications:
| Spec | Rubber belt | Length (m) | Dia. of drive drum (mm) | Max. feeding size (mm) | Capacity (m³/h) | Power (kW) |
| Width (mm) | Speed (m/s) | Slope (°) |
| DTⅡ-500 | 500 | 0.8～2.5 | 0～20° | 2～240 | 400,500,630 | 100 | 69～217 | 1.5～30 |
| DTⅡ-650 | 650 | 0.8～2.5 | 0～20° | 2～240 | 400,500,630 | 150 | 127～397 | 1.5～45 |
| DTⅡ-800 | 800 | 0.8～3.15 | 0～20° | 2～240 | 400,500,630 | 200 | 198～781 | 2.2～75 |
| DTⅡ-1000 | 1000 | 0.8～3.15 | 0～20° | 2～240 | 500,630,800 | 300 | 324～1622 | 7～100 |
