New Technology Energy Saving China Ball Mill Supplier from China
Introduction:
Ore ball mill is suitable for grinding various ores and other
materials. It is widely used for ore grinding, non-ferrous metal
beneficiation, new-type building material producing. According to
the discharge method, the ball mill divided to dry-type mill and
wet-type mill.
Our Advantage:
1. Liner is made of high-quality wear resistant material with high
strength, wear resistance and long working life;
2. High grinding efficiency, low consumption; Product fineness is
adjustable and uniform;
3. Low energy consumption, low wear, low operating costs;
4. Small vibration, low noise, environmental friendly;
Working Principle:

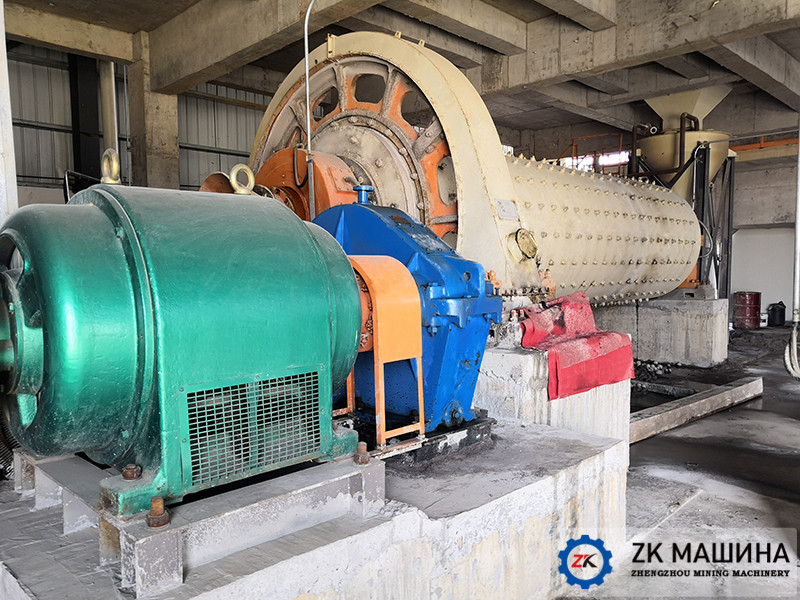

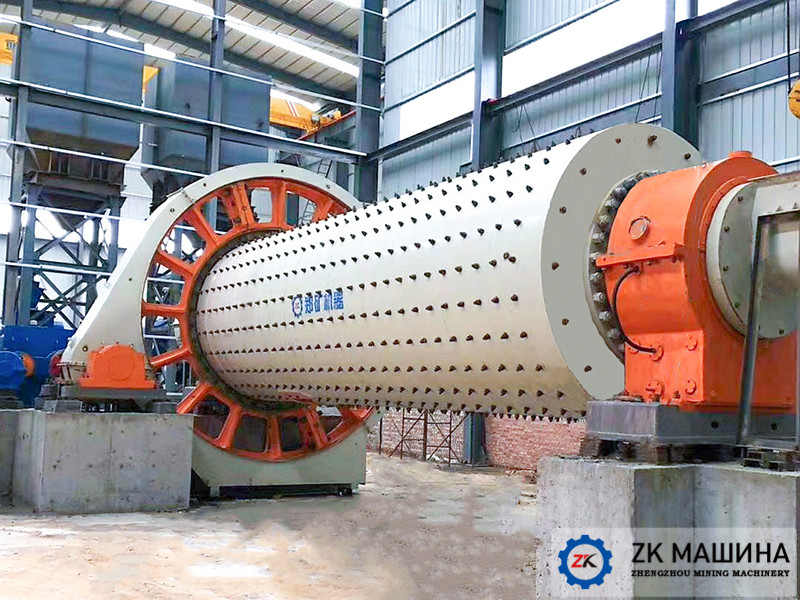

Ore Ball mill is mainly consisting of feeding device, big gear,
discharge device, cylinder, diaphragm plate, hollow shaft, liner,
drive device and other components.
1. The feeding device is consisting of inlet chute and screw. There
are liners in the inlet chute, which can extend the working life of
the feeding device.
2. There is pre-gap on the inlet hallow shaft, that can reduce the
tolerance which is made of temperature changes and installation
mistake to ensure the gear mesh.
3. Inside the ball mill, different parts have different liner
structure, which will greatly improve the grinding efficiency.
4. Dry-type ball mill adopt sliding bearing, which is good of
strength, ductility, antifriction, abrasion resistance, lubricity
and thermal conductivity. It is able to meet the lubrication
requirements of the hollow shaft. That is suitable for the
environment of low speed and heavy load in metallurgical & ore
dressing industry.
5. Wet-type ball mill adopt roller bearing, reduce useless work
consumption and easy to replace.
Technical Specifications:
| model | cylinder rev(r/min) | grind media weight (t) | feeding size(mm) | output size(mm) | output (t/h) | motor |
| type | power |
| MQG900X1800 | 38 | 1.8 | ≦25 | 0.074-.06 | 0.8-1 | Y255M-8 | 22 |
| MQG900X3000 | 37.4 | 2.7 | ≦25 | 0.074-0.3 | 0.8 | Y225M-6 | 30 |
| MQG1200x2400 | 32 | 4.8 | ≦25 | 0.074-.06 | 1.5-2 | Y280M-8 | 45 |
| MQG1200X4500 | 30 | 5.2 | ≦25 | 0.074-.06 | 1.5 | Y280M-6 | 55 |
| MQG1500x4500 | 28.8 | 10 | ≦25 | 0.074-0.4 | 3-4 | JR126-8 | 110 |
| MQG1500x5700 | 28.8 | 12 | ≦25 | 0.074-0.4 | 3-5 | JR127-8 | 130 |
| MQG1500x6400 | 28.8 | 13 | ≦25 | 0.074-0.4 | 3-5 | JR127-8 | 130 |
| MQG1830x5400 | 24.5 | 15 | ≦25 | 0.074-0.4 | 5-7 | JR137-8 | 210 |
| MQG18306400 | 24.5 | 19 | ≦25 | 0.074-0.4 | 5-7 | JR137-8 | 210 |
| MQG1830x7000 | 24.5 | 20 | ≦25 | 0.074-0.4 | 6-8 | JR138-8 | 245 |
| MQG2200x7000 | 21.6 | 30 | ≦25 | 0.074-0.8 | 8-10 | JR158-8 | 380 |
| MQG2200x9000 | 21.4 | 34 | ≦25 | 0.074-0.8 | 8-10 | JR1510-8 | 475 |
| MQG2400x7000 | 20.4 | 36 | ≦25 | 0.074-0.8 | 10-14 | JR1510-8 | 475 |
| MQG2400x8000 | 20.4 | 42 | ≦25 | 0.074-0.8 | 10-14 | YR630-8 | 560 |
| MQG2600x8000 | 19.6 | 52 | ≦25 | 0.074-0.8 | 16-20 | JR1512-8 | 630 |
| MQG3000x9000 | 18.3 | 78 | ≦25 | 0.074-0.8 | 20-25 | YR1000-8/1180 | 1000 |
