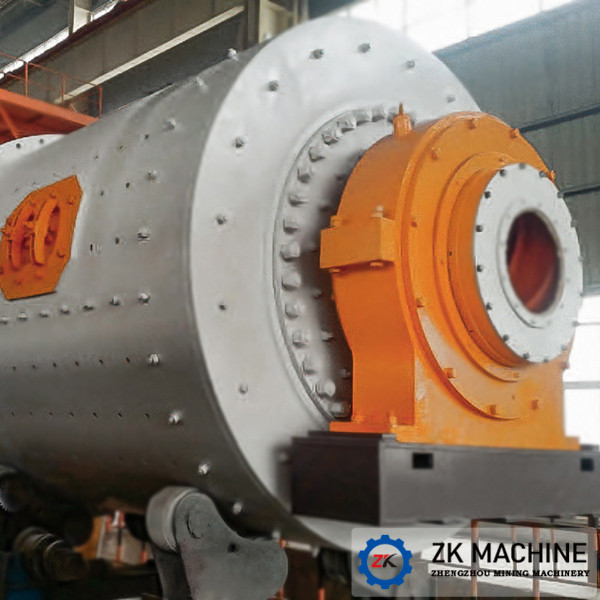

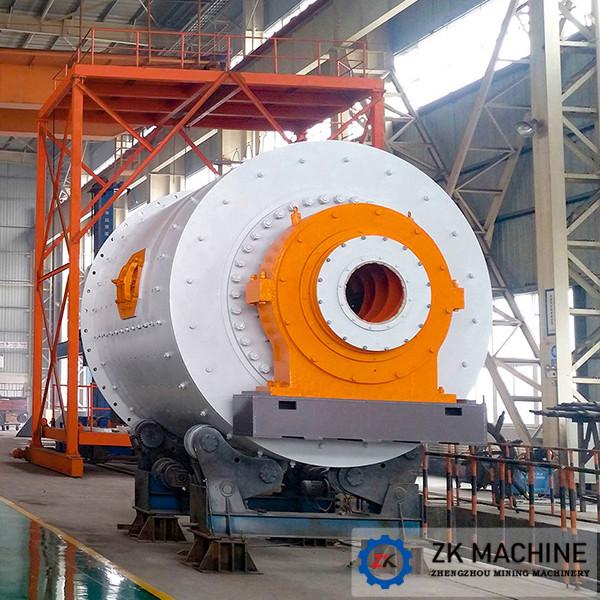

Iron Ore Ball Mill Mining For Industry/ Ore Ball Mill From China
Introduction:
Ore ball mill is used to separate and screening different ore
minerals, separate ore tailing. It also be used for ore grinding,
non-ferrous metal beneficiation, new-type building material
producing.
According to the discharge method, the ball mill divided to
dry-type mill and wet-type mill.
Structure of Ore Ball Mill:
Ore Ball mill is mainly consisting of feeding device, big gear,
discharge device, cylinder, diaphragm plate, hollow shaft, liner,
drive device and other components.
1. The feeding device is consisting of inlet chute and screw. There
are liners in the inlet chute, which can extend the working life of
the feeding device.
2. There is pre-gap on the inlet hallow shaft, that can reduce the
tolerance which is made of temperature changes and installation
mistake to ensure the gear mesh.
3. Inside the ball mill, different parts have different liner
structure, which will greatly improve the grinding efficiency.
4. Dry-type ball mill adopt sliding bearing, which is good of
strength, ductility, antifriction, abrasion resistance, lubricity
and thermal conductivity. It is able to meet the lubrication
requirements of the hollow shaft. That is suitable for the
environment of low speed and heavy load in metallurgical & ore
dressing industry.
5. Wet-type ball mill adopt roller bearing, reduce useless work
consumption and easy to replace.
Our Advantage of Non-ferrous Metal Beneficiation Ball Mill:
1. High grinding efficiency, low consumption
2. Product fineness is adjustable and uniform.
3. Low energy consumption, low wear, low operating costs.
4. Small vibration, low noise, environmental friendly
5. Liner is made of high-quality wear resistant material with high
strength, wear resistance and long working life.
Spefications:
| model | cylinder rev(r/min) | grind media weight (t) | feeding size(mm) | output size(mm) | output (t/h) | motor |
| type | power |
| MQG900X1800 | 38 | 1.8 | ≦25 | 0.074-.06 | 0.8-1 | Y255M-8 | 22 |
| MQG900X3000 | 37.4 | 2.7 | ≦25 | 0.074-0.3 | 0.8 | Y225M-6 | 30 |
| MQG1200x2400 | 32 | 4.8 | ≦25 | 0.074-.06 | 1.5-2 | Y280M-8 | 45 |
| MQG1200X4500 | 30 | 5.2 | ≦25 | 0.074-.06 | 1.5 | Y280M-6 | 55 |
| MQG1500x4500 | 28.8 | 10 | ≦25 | 0.074-0.4 | 3-4 | JR126-8 | 110 |
| MQG1500x5700 | 28.8 | 12 | ≦25 | 0.074-0.4 | 3-5 | JR127-8 | 130 |
| MQG1500x6400 | 28.8 | 13 | ≦25 | 0.074-0.4 | 3-5 | JR127-8 | 130 |
| MQG1830x5400 | 24.5 | 15 | ≦25 | 0.074-0.4 | 5-7 | JR137-8 | 210 |
| MQG18306400 | 24.5 | 19 | ≦25 | 0.074-0.4 | 5-7 | JR137-8 | 210 |
| MQG1830x7000 | 24.5 | 20 | ≦25 | 0.074-0.4 | 6-8 | JR138-8 | 245 |
| MQG2200x7000 | 21.6 | 30 | ≦25 | 0.074-0.8 | 8-10 | JR158-8 | 380 |
| MQG2200x9000 | 21.4 | 34 | ≦25 | 0.074-0.8 | 8-10 | JR1510-8 | 475 |
| MQG2400x7000 | 20.4 | 36 | ≦25 | 0.074-0.8 | 10-14 | JR1510-8 | 475 |
| MQG2400x8000 | 20.4 | 42 | ≦25 | 0.074-0.8 | 10-14 | YR630-8 | 560 |
| MQG2600x8000 | 19.6 | 52 | ≦25 | 0.074-0.8 | 16-20 | JR1512-8 | 630 |
| MQG3000x9000 | 18.3 | 78 | ≦25 | 0.074-0.8 | 20-25 | YR1000-8/1180 | 1000 |
