Cement Continouos Ball Mill From China / Batch Ball Mill for Sale
Introduction:

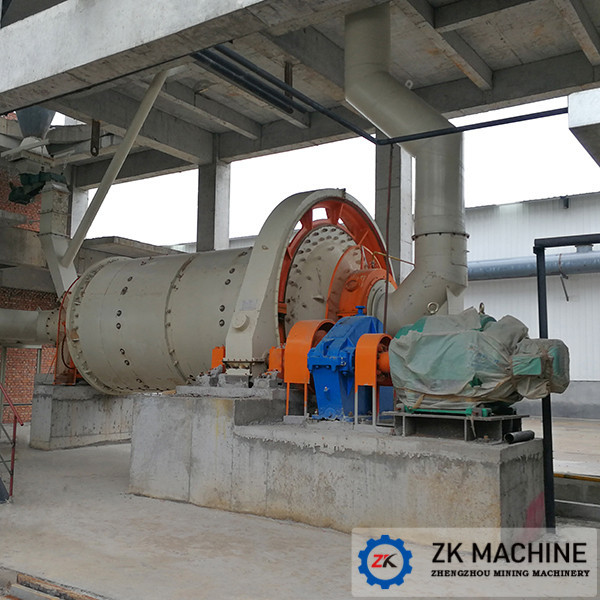

In the continuous type Ball Mill, the material is being fed from
the one end through its hollow shaft, while the crushed material
comes out from the hollow shaft, at the other end. Usually
continuous Mills are used when the production rate is required to
be high.
Specially designed for :Cement, Iron Ore, Copper Ore, Alumina,
Cement, Calcium Carbonate, Bauxite, Calcium Carbide, Calcium Oxide,
Ceramic, Refractory, Slurry, Coconut shell, Carbon industries etc.
Our Advantage:
1. Energy saving and Long working life: Traditional sliding
bearings are replaced by double row roller bearings in small and
medium size ball mill to reduce energy consuming, new endurable
wearing parts to increase service life of vulnerable parts.
2. Big crushing ratio and High ore particle fineness: The intrinsic
grille pattern forcing evacuation is instead by over fall pattern
controlling one. This can improve the milling of the granule and
the quantity dealt.
3. Simple structure and convenient maintenance: Ball Mill changes
the complicated grinding mill structure. We design the body and
chassis integration which makes it easy to place the machine on the
ground. Three meters of the ball machine above is especially
configured with jack-up devices for easy maintenance.
4. Good corrosion resistance and Runs steadily and efficiently: The
rotary rack wheel uses casting gear hobbing and inside the cylinder
there is wear-resisting lining board which has fine abrasion
performance. This ball mill has stable operation and reliable
performance.
5. Easy installation Adjustment, and operation and High technology:
Low speed driving unit with lifting device; Large ball mills adopt
pitot pressure or hydrostatic bearings.
Technical Specifications:
| model | cylinder rev(r/min) | grind media weight (t) | feeding size(mm) | output size(mm) | output (t/h) | motor |
| type | power |
| MQG900X1800 | 38 | 1.8 | ≦25 | 0.074-.06 | 0.8-1 | Y255M-8 | 22 |
| MQG900X3000 | 37.4 | 2.7 | ≦25 | 0.074-0.3 | 0.8 | Y225M-6 | 30 |
| MQG1200x2400 | 32 | 4.8 | ≦25 | 0.074-.06 | 1.5-2 | Y280M-8 | 45 |
| MQG1200X4500 | 30 | 5.2 | ≦25 | 0.074-.06 | 1.5 | Y280M-6 | 55 |
| MQG1500x4500 | 28.8 | 10 | ≦25 | 0.074-0.4 | 3-4 | JR126-8 | 110 |
| MQG1500x5700 | 28.8 | 12 | ≦25 | 0.074-0.4 | 3-5 | JR127-8 | 130 |
| MQG1500x6400 | 28.8 | 13 | ≦25 | 0.074-0.4 | 3-5 | JR127-8 | 130 |
| MQG1830x5400 | 24.5 | 15 | ≦25 | 0.074-0.4 | 5-7 | JR137-8 | 210 |
| MQG18306400 | 24.5 | 19 | ≦25 | 0.074-0.4 | 5-7 | JR137-8 | 210 |
| MQG1830x7000 | 24.5 | 20 | ≦25 | 0.074-0.4 | 6-8 | JR138-8 | 245 |
| MQG2200x7000 | 21.6 | 30 | ≦25 | 0.074-0.8 | 8-10 | JR158-8 | 380 |
| MQG2200x9000 | 21.4 | 34 | ≦25 | 0.074-0.8 | 8-10 | JR1510-8 | 475 |
| MQG2400x7000 | 20.4 | 36 | ≦25 | 0.074-0.8 | 10-14 | JR1510-8 | 475 |
| MQG2400x8000 | 20.4 | 42 | ≦25 | 0.074-0.8 | 10-14 | YR630-8 | 560 |
| MQG2600x8000 | 19.6 | 52 | ≦25 | 0.074-0.8 | 16-20 | JR1512-8 | 630 |
| MQG3000x9000 | 18.3 | 78 | ≦25 | 0.074-0.8 | 20-25 | YR1000-8/1180 | 1000 |
