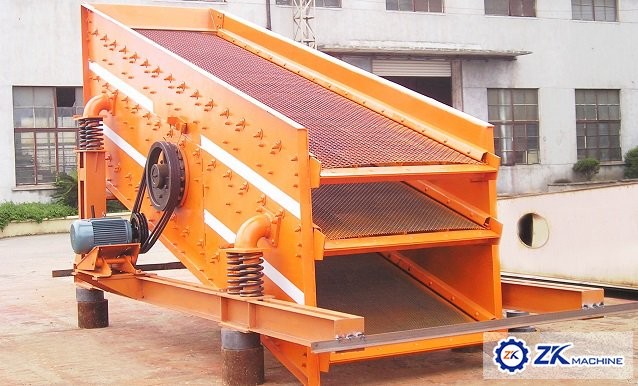

10-600 T/H Vibro Sand Screening Machine, Linear Motion Vibrating
Screen
Linear vibrating screen has a unique effect on powdery, granular materials selection and
classification.
Application: Widely used in chemical, pharmaceutical, food, metal, metallurgy,
mining and other industries.
1. Chemical industry: fertilizers, urea, petroleum coke, resins,
paints, cosmetics, paints and so on.
2. The pharmaceutical industry: industrial chemicals, the powder
particles pills, pellets, etc;
3. Metals, mining metallurgy: aluminum powder, lead powder, copper
powder, ore alloy powder, powder electrodes, manganese dioxide,
copper powder, magnetic power, abrasives, refractory, kaolin,
limestone, alumina, heavy carbon acid calcium, quartz sand.
4. Other industries: plastics, abrasives, activated carbon, carbon,
building materials industry.
Vibrating screen Structure
Linear vibration sieve using vibration motor as vibration source,
the materials is thrown up on the screen, at the same time for
linear motion, the material feeding from the feeder evenly into the
screen, screen material, produced a number of specifications
through multi-layer screen material, separately from the respective
outlet.
Vibrator Screening Equipment:
1. Sieve machine design, ingenious and easy to assemble, one person
can operate the screening machine.
2. Independent and other related brand manufacturers, compared with
a larger screen area and high efficiency of processing capacity.
3. Unique screen structure design, convenient and fast change
screen (only 3 to 5 minutes), in addition, this design allows the
use of a variety of screen (nylon, special dragon, PP nets).
4. The parent network to fully support the fine mesh, so fine mesh
scored a longer life, and reduce the supplies of fine mesh, the
production process and the long time can reduce a lot of cost.
Sand Screening Specifications:
| Model | Sieve
Specifi-
cations | Sieve layer | Mesh
size | Feeding size | Cap-acity | Motor Power | Total
Weight | Vibr-ating frequ-ency | Double ampl-
itude | Sieve
obliq-uity | Dimensions |
| (L*W)(mm) | Layer | mm | mm | (t/h) | kw | kg | (Hz) | (mm) | o | L*W*H(mm) |
| ZSG1237 | 3700*1200 | 1 | 4-50 | <=200 | 10-100 | 5.5*2 | 2250 | 16 | 6-8 | 15 | 3800*2050*1920 |
| 2ZSG1237 | 3700*1200 | 2 | 4-50 | <=200 | 10-100 | 5.5*2 | 3345 | 16 | 6-8 | 15 | 3800*2050*2200 |
| ZSG1443 | 4300*1400 | 1 | 4-50 | <=200 | 10-150 | 5.5*2 | 4100 | 16 | 6-8 | 15 | 4500*3040*2500 |
| 2ZSG1443 | 4300*1400 | 2 | 4-50 | <=200 | 10-150 | 5.5*2 | 4900 | 16 | 6-8 | 15 | 4500*3040*2700 |
| 3ZSG1443 | 4300*1400 | 3 | 4-50 | <=200 | 10-150 | 5.5*2 | 5870 | 16 | 6-8 | 15 | 4500*3040*2820 |
| 2ZSG1548 | 4800*1500 | 2 | 5-50 | <=200 | 15-200 | 7.5*2 | 5836 | 16 | 8-10 | 15 | 4800*3140*2814 |
| 3ZSG1548 | 4800*1500 | 3 | 5-50 | <=200 | 15-200 | 7.5*2 | 6900 | 16 | 8-10 | 15 | 4799*3140*3014 |
| 2ZSG1848 | 4800*1800 | 2 | 5-50 | <=300 | 50-500 | 7.5*2 | 6489 | 16 | 8-10 | 15 | 4799*3440*2814 |
| 3ZSG1848 | 4800*1800 | 3 | 5-50 | <=300 | 50-500 | 7.5*2 | 7750 | 16 | 8-10 | 15 | 4799*3440*3014 |
| 4ZSG1848 | 4800*1800 | 4 | 5-50 | <=200 | 50-500 | 11*2 | 8300 | 16 | 8-10 | 15 | 4799*3440*3503 |
| 2ZSG1860 | 6000*1800 | 2 | 5-150 | <=300 | 80-600 | 11*2 | 9950 | 16 | 8-10 | 15 | 6000*3440*3326 |
