Low Noise Chain Conveying Equipment, Mining Chain Bucket Elevator

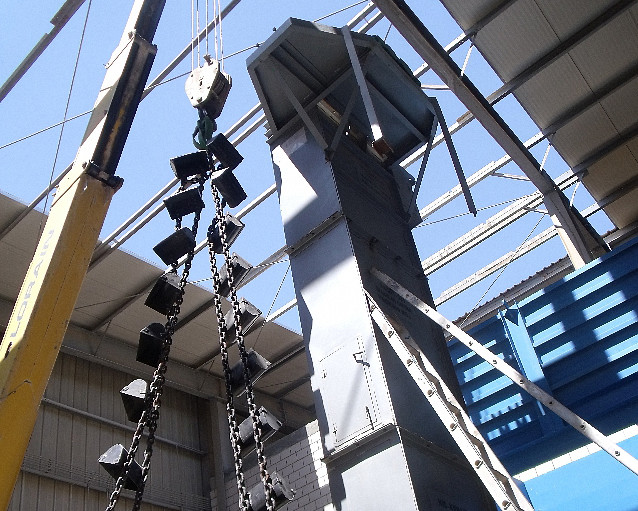

Chain Bucket Elevator Introduction:
Chain Bucket Elevator is suitable for vertical conveying powder, granule and small block
of disperses material, such as grain, coal, cement, stone, sand,
clay, ore etc. It can lift the material with the temperature below
250 degree and the maximum hoisting height is 40 meters.
Scraper Chain Conveyor Features:
1. Long pitch chain produced by professional company, after heat
treatment, wear light, big load capacity, long service time.
2. Hopper is dotted continuous type, feed for continuous flow,
without pay, hopper wear reduce greatly. Hopper overall using 16 Mn
steel manufacturing, easyly grinding welding on 65 Mn steel, can
greatly increase its service time.
3. Hopper spacing is small that lift the same material need low
speed, it can greatly reduce the chain also wear, so as to prolong
the service time of the bucket elevator.
4. Drive wheel flange hub packaged structure is used in wheel round
the fate disc assembly, easy to change.
5. Bucket elevator tail tensioning use heavy hammer type automatic
tensioning device, without tension caused by operation fault and
often tensioning operation.
6. Using lifting dedicated motor and promised to avoid the fault
chain, hopper reverse breakdowns.
7. Overload outage alarm and electric protection device, ensure the
safe operation of the equipment.
8. Hopper material is 16 Mn steel welding and become,
wear-resisting material hopper for bolt connection with chain.
According to different conveying material, hopper have middle deep
or deep. Deep hopper for larger particles block material, middle
deep type hopper is suitable for smaller particles and powder
material.
TH Bucket Elevator Model Number:
TH bucket elevator have kinds of specifications: TH160, TH250,
TH315, TH400, TH500
Screw Conveyor Performance Features:
1. Small power, less reactive power. Adopt inflow type feeding,
induction discharge, large capacity intensive hoppers design.
Feeding back and digging material are avoided in the working time;
2. Wide range for lifting;
3. Good sealing, less environmental pollution.
Technical Data:
| Model | TH160 | TH250 | TH315 | TH400 | TH500 |
| Capacity(m³/h) | Deep Bucket | Light Bucket | Deep Bucket | Light Bucket | Deep Bucket | Light Bucket | Deep Bucket | Light Bucket | Deep Bucket |
| 8 | 3.1 | 14 | 6.8 | 28 | 16 | 47.2 | 30 | 70 |
| Hopper | Bucket Type | Deep Bucket | Light Bucket | Deep Bucket | Light Bucket | Deep Bucket | Light Bucket | Deep Bucket | Light Bucket | Deep Bucket |
| Volume L | 1.1 | 0.65 | 3.2 | 2.6 | 5.2 | 4.4 | 10.5 | 10 | 15 |
Bucket Distance (mm) | 400 | 400 | 400 | 400 | 500 | 500 | 500 | 500 | 600 |
| Ring Chain | Pitch Qty | 7 | 7 | 9 | 9 | 7 |
| (mm) | φ14×50 | φ14×50 | φ18×50 | φ18×50 | φ22×75 |
| Chain Hook | (mm) | φ14×M12 | φ14×M12 | φ18×M14 | φ18×M14 | φ25×M20 |
| Bucket movement speed (m/s) | 1.0 | 1.25 | 1.25 | 1.25 | 1.37 |
| Drive Shaft Speed ( rpm) | 47.5 | 47.5 | 37.5 | 37.5 | 36.5 |
