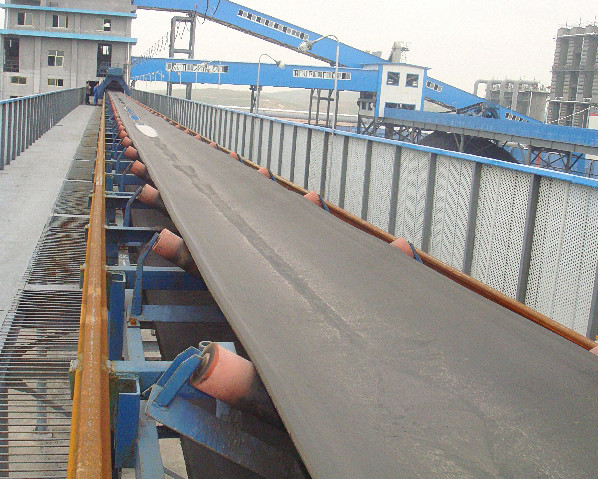

Large Output Belts Conveyor/TD75 Fixed Type Belt Conveyor
D75 Fixed Type Belt Conveyor Introduction:
TD75 fixed type belt conveyor is used to convey bulk material or packed product, it can work
single or several unit or work together with other conveyors form
horizontal conveying system or inclined system. Its working
temperature is between -25℃～40℃, it requires conveying material
should not exceed 60℃, heat-resistance belt can convey material
below 120 ℃.If material temperature higher than this, belt conveyor
is not suitable. It should use oil resistance, or acid and bases
proof rubber belt or plastic belt when it convey grease material or
material has property of acid, bases etc.
Application of Fixed Belt Conveyor:
Metallurgy, mining, coal, chemical engineering industries.
Mining Conveying Belts Conveyor Structure:
1) Driving device of conveyor has open type and closed type. Open
type: it is consist of motor, high speed coupling, brake, gearbox,
low speed coupling and pin roller. The unit mount together on a
steel base (motor power within 10kW), or mount on concrete base
separately. (Motor power more than 115kW). Closed driving device is
electric drum, motor and gearbox system are mounted inside of drum.
Compared to open driving device. Its features are compact, safe
operation, small land area, light, low cost. TD75 various
specification drum to match its requirement.
2) At material feeding area, design impact roller to reduce impact
from material to belt.
3) In order to avoid off-tracking, install one set groove aligning
roller every 10 set on load section, install one set horizontal
aligning roller every 6-10 set on on-load branch.
4) The tension gear has different type, which is suitable for to
different condition.
Our Advantages of TD75 Fixed Type Belt Conveyor:
1. Wide range of conveying material, it can convey wet, dry,
powdery or lump material or packed product.
2. Big conveying capacity and long conveying distance.
3. It even can realize multipoint load material and discharge.
4. Stable running, small noise.
5. Simple structure, reliable working, easy operation, easy
installation and maintenance.
Belt Conveyor Belt Specifications:
| Model | Rubber Belt | Conveying Length(m) | Diameter of Driving Drum
(mm) | Max Feeding Size(mm) | Capacity
(m³/h) | Power (kW) |
| Width(mm) | Speed
(m/s) | Inclined
(°) |
| TD75-500 | 500 | 0.8～2.5 | 10～20° | 2～240 | 400,500,630 | 100 | 69～217 | 1.5～30 |
| TD75-650 | 650 | 0.8～2.5 | 10～20° | 2～240 | 400,500,630 | 150 | 127～397 | 1.5～45 |
| TD75-800 | 800 | 0.8～3.15 | 10～20° | 2～240 | 400,500,630 | 200 | 198～781 | 2.2～75 |
| TD75-1000 | 1000 | 0.8～3.15 | 10～20° | 2～240 | 500,630,800 | 300 | 324～1622 | 7～100 |
