Mining Conveyor/ Screw Conveyor of Mining ball mill/ Cement Screw
Conveyor
GLS tube screw conveyor is a continuous conveyer equipment without the flexible traction,
and it is suitable for conveying small sticky powders, granular and
small pieces of material, and not suitable for conveying
perishable, large viscous, easy caking and large pieces of
material. For continuous conveying bulk materials with short
distance horizontal or slightly inclined (15°or less ). Generally
ambient temperature is -20 ~ 50℃, and material temperature is less
than 100℃. It can mix materials at the same time.
Application of Tube Screw Conveyor:
Be applied in metallurgical industry, building materials industry,
cement industry, mechanical industry, chemical industry, electric
power industry, beneficiation industry and etc.

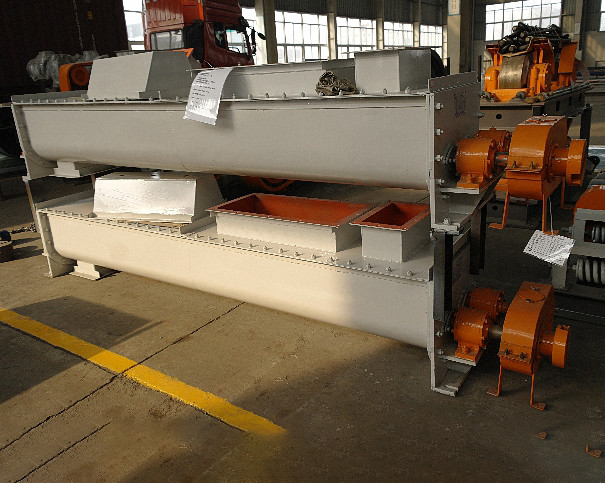

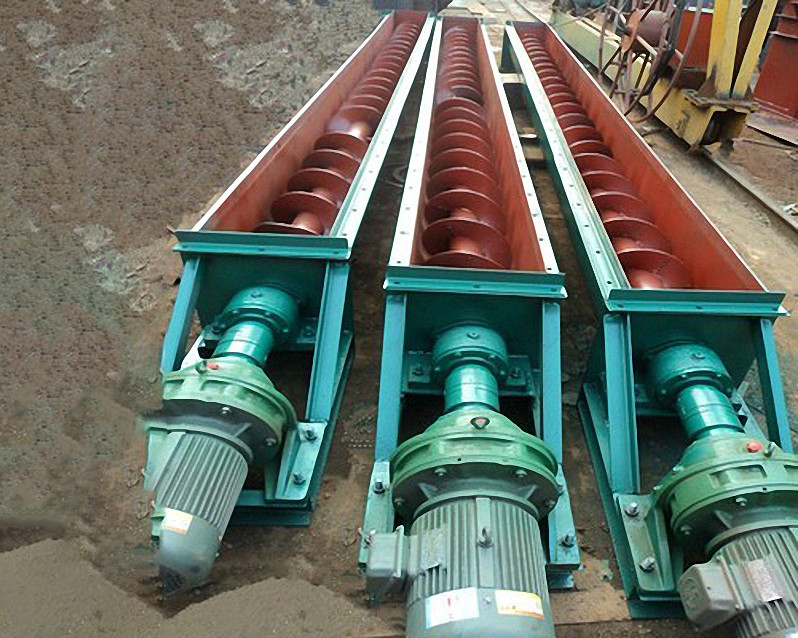

Structure
GLS tube screw conveyor is consist of screw shaft, shell and
driving device. And screw shaft is assembled by coupling shaft,
helical blades and etc. Actuating device is consist of reducer,
coupling and transmission pedestal.
OUR ADVANTAGE of Coal Screw Conveyor:
1. Head and tail bearing pedestals are both disposed outside the
shell, it is easy for installation and maintenance, and at the
same, and it can prevent dust going into the bearing. There is a
packing box on the bearing seat, inside the box, it is filled with
asbestos packing, and outside the box, and it is gland compaction,
and this can effectively prevent dust spilling.
2. The screw leaf in discharging mouth of GLS tube screw conveyor
is designed as taper, and on special conditions, its reversed
helical blade can prevent powder from clogging ends.
3. End bearings were installed in the frond and end part of closed
trough, and the function of the bearing is to bear the axial force
generated by conveying.
Grain Screw Conveyor Specifications
| Model | Dia of Spiral Leaf (mm) | Screw Pitch
(mm) | Rotating Speed
(r/min) | Capacity
(m³/h) | Weight |
| GLS100 | 95 | 80 | 71～140 | 1.1～2.2 | Depending on the length |
| GLS150 | 142 | 120 | 50～64 | 1.5～3.5 | Depending on the length |
| GLS250 | 245 | 200 | 50～80 | 10～20 | Depending on the length |
| GLS315 | 296 | 300 | 40～80 | 15～35 | Depending on the length |
| GLS400 | 396 | 300 | 40～80 | 30～60 | Depending on the length
|
Notes: Power, dimension and weight will change if spiral length changes,
therefore they are not filled in the form.
