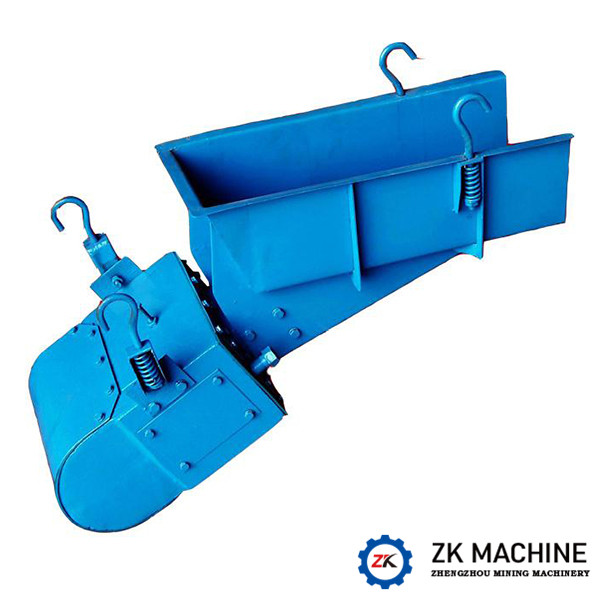

GZ Series Electromagnetic Mining Feeder / Vibratory Feeders for
Sale
Introduction:
GZ series Electromagnetic Vibrating Feeder is mainly used for
evenly, continuous and quantitative feeding for lump type, particle
type and powder type materials, which is from storage silo and
other storage equipment to receiving device with automatic feeding
volume adjustment control. The series of feeder have the features
like simple structure, easy operation, no need lubrication, low
energy consumption and homogenous feeding volume, which can be
applied to Mine, Metallurgy, Construction, Light industry,
Chemical, Electricity, Machine and Grain industry.
Vibrating Feeder Application:
The series duty Vibrating feeders are widely used in metal-mining,
construction, cement industry and coal industry and so on. For its
corrosion resistance and crushing resistance, most of materials can
be transported by this machine.
Our Advantages:
1. Advanced vibration mechanism with low energy consumption because
of working on low critical near resonance state;
2. Adopt Silicon controlled rectifier half-wave rectifier control
method, when operating, automatic control can be realized by adjust
the development angle of silicon controlled.
3. Due to the instantaneous change or opening and closing for
material flow, the feeding volume with high accuracy.
4. When operating, material will been throw up continuous, then
jumping forward with parabolic trajectory, so that have less
abrasion to screen cell.
5. Widely application, alloy screen cell feeder can used for
conveying wear and corrosive materials, sealing structure feeder
can used for high pollution and easy to dust material.
6. Feeder with features like small overall size, light weight,
simple structure, no need lubrication and easy to maintenance.
Vibrating Feeder Specification:
| Model | Capacity(t/h) | Max Feed Size(mm) | Motor Power(kw) |
| Level | -10° |
| GZ1 | 5 | 7 | 50 | 0.06 |
| GZ2 | 10 | 14 | 50 | 0.15 |
| GZ3 | 25 | 35 | 75 | 0.2 |
| GZ4 | 50 | 70 | 100 | 0.45 |
| GZ5 | 100 | 140 | 150 | 0.65 |
| GZ6 | 150 | 210 | 200 | 1.5 |
| GZ7 | 250 | 350 | 250 | 3 |
| GZ8 | 400 | 560 | 300 | 4 |
| GZ9 | 600 | 840 | 350 | 5.5 |
