    High Precision Rotary Disk Feeder Machine Heavy Load 400-3000mm Diameter

    Ask Lasest Price
    Brand Name : ZK CORP
    Model Number : Disk feeder machine
    Certification : ISO,CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, MoneyGram, Western Union
    Supply Ability : 30 Per Month
    Delivery Time : 30days
    • Product Details
    • Company Profile

    High Precision Rotary Disk Feeder Machine Heavy Load 400-3000mm Diameter


    High Precision Rotary Disk Feeder Machine Heavy Load 400-3000mm Diameter

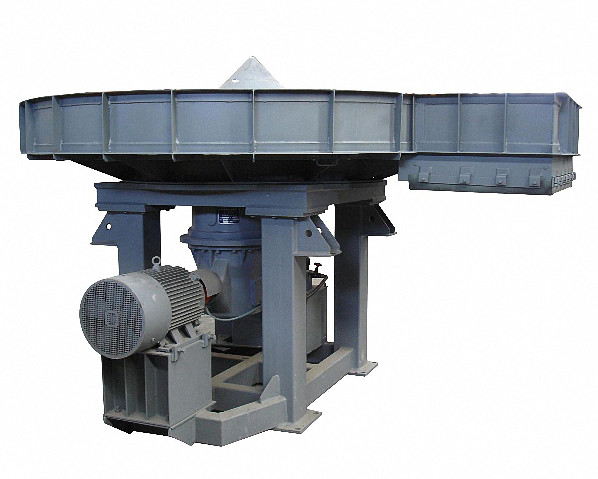

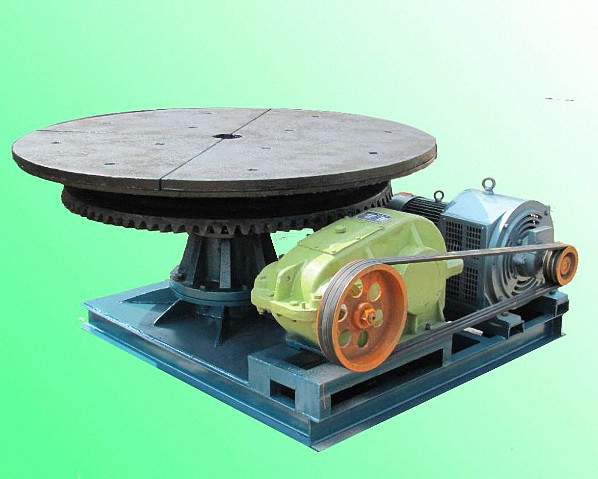

    Disk Feeder Introduction:

    Disk feeder is a cubage measuring feeding equipment; it supplies materials to the next procedure evenly and continuously; at the same time, it can bear relatively higher pressure. It is a fine powdery material feeder suitable for non-cohesive materials like coal powder, cement, chamotte, limestone, shale, gangue and clunch. It is widely used in gold concentrator, coal mine, chemical plant, construction and foundry for quantitative and even feeding.


    High Precision Rotary Disk Feeder Machine Heavy Load 400-3000mm Diameter


    Advantage of Disk Feeder:
    I. No blocking.

    II. Adjusting feeding quantity conveniently.

    III. It can bear the pressure of more than 15 meters of ore trough, the service life is more than 10 years.

    IV. Hardened gear transmission.

    V. The transmission parts are in well lubricating condition.

    VI. Adopting unique sealed structure .


    High Precision Rotary Disk Feeder Machine Heavy Load 400-3000mm Diameter


    Work Principle of Disk Feeder:

    The driving device of hung disc feeder drives the disk to rotate uniformly through the bevel gear. When the material reach the disk, the material rotates together with the disk.

    Material is scraped through the baffle plate on the control device, so as to achieve the purpose of feeding.


    High Precision Rotary Disk Feeder Machine Heavy Load 400-3000mm Diameter


    Disk feeder Specifications:


    model and specdisk dia(mm)capacity(m3/h)disk rev(r/min)feeding size(mm)

    motor


    modelpower(kw)
    DB44000.19-1.321015Y90S-60.75
    DB66000.69-3.9825Y90L-61.1
    DB88001.18-7.65830Y90L-61.1
    DB1010002.59-16.77.540Y100L-61.5
    DB1313004.19-27.86.550Y132L-63.0
