High Efficient Cement Rotary Kiln With ISO CE Approved Sale

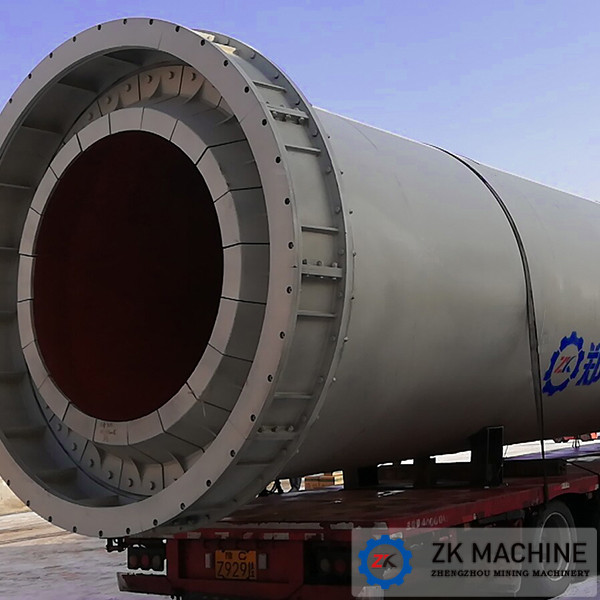

Rotary Kiln Introduction:
Rotary Kiln belongs to building material equipment, according to different
materials, which can be divided into cement kiln, metallurgy
chemical kiln and lime kiln. Cement kiln is used for making cement
clinker and there are dry and wet methods to make cement clinker.
Metallurgy chemical kiln is widely used for magnetic roasting of
poor iron ore and oxidizing roasting of chrome and nickel in the
steel factory; backing high-alumina mine in the refractory material
factory; baking chamotte and alumina in the aluminum factory and
baking chrome ore and chrome powder in the chemical plant. The Lime
Kiln is used for roasting active lime in steel works and ferroalloy
plants and light roasting dolomite.
Wide Application of Rotary Kiln:
Rotary kiln refers to rotary calcining kiln, mainly used for
calcining calcium aluminate, limestone, bauxite, kaolin clay,
gypsum etc., which is widely used in the fields of building
materials, metallurgy, chemical industry, environmental protection,
etc.
Our Advantages:
1. New type technology is adopted by main driving system. Compared
with traditional magnetic and DC speed regulation, its main driving
system has the advantages like energy saving, environmental, wide
speeding adjusting range, high performance and stable operation.
2. After the welding of bases for supporting devices of supporting
roller and catching roller, vibration aging treatment should be
applied for remove the welding stress. Then, use vertical lathe and
boring-milling machine for integration fabrication. This process
can guarantee the requirement of fabrication precision and
dimension & location tolerance. Installation accuracy of rotary
kiln is obviously improved.
3. This process can guarantee the requirement of fabrication
precision and dimension & location tolerance. Installation accuracy
of rotary kiln is obviously improved.
4. Temperature measuring point is reserved at bearing base of
supporting roller. It is mainly used for automation detection of
kiln operation status by insert the measuring device.
Structure:
1. Support device: advanced shaft structure, automatic temperature
measuring device and electrical heating.
2. Catch wheel: including two kinds of mechanical wheel and
hydraulic pressure.
3. Gears: single or double. Control the rotating speed by variable
motor, DE machine and frequency variable motor. Be reliable, energy
saving and efficient.
4. Cylinder tyre bolster: lower bolster has three types: fixed,
zoom and floating. The structure is simple. Replacement is
convenient and won't hurt cylinder.
5. Sealing equipment: there are many kinds for choice according to
kiln models, including air cylinder edge sealing, spring edge
sealing, graphite block sealing and combination for above. The
feather is adaptive for cylinder rotating and swing. And sealing
effect is very good.
6. Kiln head hood: including stationary type and flexible type.
Official Website: http://www.inczk.com/
Specifications:
| Spec | Output(t/h) | Rev(rpm) | Pedestal Number | Reducer | Electricmotor | Powe(kW) |
| Model |
| Ф1.6x32m | 2.0 | 0.58-2.85 | 3 | ZQ75-50 | YCT250-4A | 18.5 |
| Ф1.6/1.9x36m | 2.5-3.0 | 0.53-1.59 | 3 | ZQ110-7 | YCT250-4B | 22 |
| Ф1.9x39m | 3.0-3.4 | 0.53-1.59 | 3 | ZQ125-7 | YCT315-4A | 37 |
| Ф2.2x45m | 4.0-5.0 | 0.21-1.64 | 3 | hostZS125-5 | hostYCT315-4B | 45 |
| assistZQ40-40 | assistY112M-4 | 4 |
| Ф3.2x50m | 1000 | 0.79-3.94 | 3 | hostNZS955-28VBR | hostZSN4-280-21B | 160 |
| assistZL50-9-2 | assistY180L-6 | 15 |
| Ф3.2x64m | 8.0-10.0 | 0.40-1.50 | 4 | hostZL130-16 | hostZSN-280-11B | 190 |
| assistZL50-10 | assistY180L-4 | 22 |
| Ф3.2x118m | 17.0 | 0.29-1.46 | 6 | hostJH500C-SW-71 | hostZ4-250-31 | 110 |
| assistZL50-8-1 | assistY160L-6 | 11 |
| Ф3.3x50m | 1000 | 0.36-3.57 | 3 | hostNZS995-40-VBL | hostZSN4-280-21B | 160 |
| assist NZS352-31.5 | assistY160M-4 | 11 |
| Ф3.8x58m | 20.8 | 0.4-1.5 | 3 | hostZSY500-40 | hostzsn-315-072 | 250 |
| assistZL50-14 | assisty180L-4 | 22 |
| Ф4.0x60m | 25 | 0.4-1.5 | 3 | hostZSY630-35.5 | hostZSN4-355-092 | 315 |
| assistZL65-16 | assistY200L-4 | 30 |
| Ф4.0x80m | 29.17 | 0316-1.528 | 4 | hostJH560C-SW-71 | hostZSN4-280-11B | 160 |
| assistZL50-9-1 | assistY180L-6 | 15 |
| Ф4.0/3.5/4.0x150m | 30.4 | 0.34-1.71 | 6 | hostJH560C-SW-56-1/2 | hostZSN4-280-11B | 2X125 |
| assistZL50-10-1/2 | assistY160L-6 | 2X11 |
| Ф4.0x150m | 33.3 | 0.51-1.53 | 6 | hostJH560C-SW-63-1/2 | hostZSN4-280-11B | 2X125 |
| assistZL60-12-1/2 | assistY160L-6 | 2X11 |
| Ф4.0x150m | 30.0-34.0 | 0.40-1.59 | 6 | hostJH800C-SW-90 | hostZSN4-355-092 | 280 |
| assistJH280-SW-40 | assistY200L-4 | 30 |
| Ф4.7x72m | 4000 | 0.35-3.50 | 3 | hostZSY710-28-V | hostZ4-400-32 | 550 |
| assistZL60-7-2 | assistY200L-4 | 30 |
Remark:According to the requirement, the kiln length and driving
system can be revised.
★ means the rotary kiln match with vertical pre-heater
Main spare parts is 1, sealing plate, 2. Oil sealing, 3. Nylon pin
4, Rubber block 5, Kiln head back plate.
