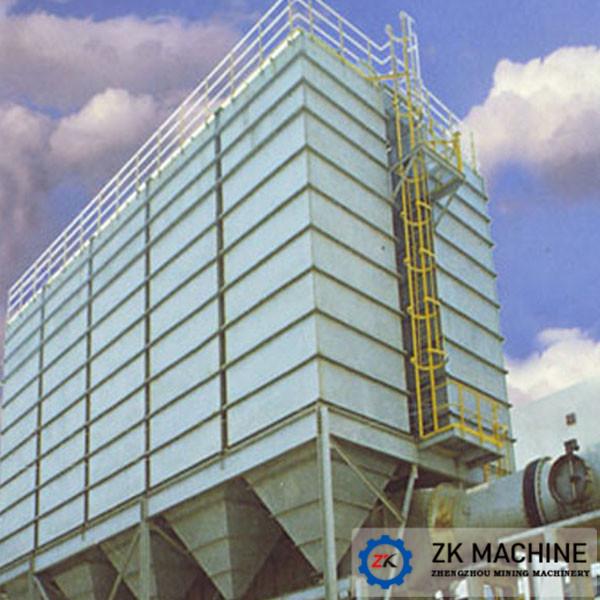

Industrial Dust Cleaning Machine Modular Baghouse
Industrial Dust Collect Solution:
Our bag type filter is a kind of small and medium-sized pulse jet
dust collector. The most high efficient dust removal for your dust
prevention circumstance. To adopt pulse blowing dedust and PLC
controller, the automatic working can be come true. The advantage
is reliable operation, easy maintenance and management. Through our
design program and every kind of detectors signal, we can see every
parts of the equipment during it working. Our dust collector
equipment often can be widely used in cement, metallurgy, electric
power, chemical and other industries of dust gas purification and
fine powder material recycling collection.
Dust Cleaning Machine Structure Composition:
The customized dust catcher are composed by the filter chamber
housing, clean air chamber enclosure, filter bag, filter cage,
pulse injection device, ash hopper, screw conveyor and discharger,
etc. At the end, it needs centrifugal fan for power system. In another type of dust catcher, the dedusting job can be done by
every chamber isolation. The every chamber of the pulse and soot cleaning cycle by soot
cleaning program controller.
Dust Collector Advantages:
GD horizontal electrostatic precipitator is economical and
convenient for installation, adjustment and maintenance. It can be
widely used for gas filtration in electricity, metallurgy,
chemicals, building materials, and other industries.
1. The inside of electric field is maintenance-free, and the
maintenance outside external electrical field can be done during
running ;
2. Large corona wire stiffness, good discharge performance, can
continue to work effectively;
3. Rapping intensity, period, sequence can be adjusted in
accordance with the appropriate requirements;
4. High temperature resistance, can work under 450 ℃. Solid
structure, nice rapping force transmission, a wide range of
applications;
Dust Collector Specifications:
| Model |
Circulation Area
(㎡) |
Collecting Area
(㎡) |
Electric Field Height
(m) | Flow Rate (m³/h) | Electric Field |
Dust Collecting Efficiency
(%) | Electric Field Length (m) | Electrode Spacing ((mm)) | Channel | Wind Speed (m/s) | Weight ( t ) |
| GD40 | 40 | 2355 | 9 | 115200-172800 | 3 | 98-99.7 | 3×3 | 400 | 11 | 0.8-1.2 | 116.5 |
| GD45 | 45 | 2617 | 10 | 129600-194400 | 3 | 98-99.7 | 3×3 | 400 | 11 | 0.8-1.2 | 128.2 |
| GD50 | 50 | 2980 | 8.35 | 144000-216000 | 3 | 98-99.7 | 3×3 | 400 | 15 | 0.8-1.2 | 143.4 |
| GD60 | 60 | 3569 | 10 | 172800-259000 | 3 | 98-99.7 | 3×3 | 400 | 15 | 0.8-1.2 | 170.3 |
| GD70 | 70 | 4175 | 11.7 | 201600-302400 | 3 | 98-99.7 | 3×3 | 400 | 15 | 0.8-1.2 | 198.6 |
| GD80 | 80 | 4746 | 10.5 | 230400-345600 | 3 | 98-99.7 | 3×3 | 400 | 19 | 0.8-1.2 | 224.6 |
| GD90 | 90 | 5356 | 11.82 | 259000-388800 | 3 | 98-99.7 | 3×3 | 400 | 19 | 0.8-1.2 | 247.5 |
| GD100 | 100 | 5967 | 13.2 | 288000-432000 | 3 | 98-99.7 | 3×3 | 400 | 19 | 0.8-1.2 | 275.1 |
| GD110 | 110 | 6566 | 12 | 316800-475200 | 3 | 98-99.7 | 3×3 | 400 | 23 | 0.8-1.2 | 297.3 |
| GD120 | 120 | 7113 | 13 | 345600-518400 | 3 | 98-99.7 | 3×3 | 400 | 23 | 0.8-1.2 | 321.3 |
| GD150 | 150 | 8023 | 13 | 388000-623000 | 3 | 98-99.7 | 3×3 | 400 | 28 | 0.83-0.89 | 395.6 |
| GD200 | 200 | 11050 | 13 | 450000-725000 | 3 | 98-99.7 | 3×3 | 400 | 28 | 0.9-1.05 | 526.4 |
