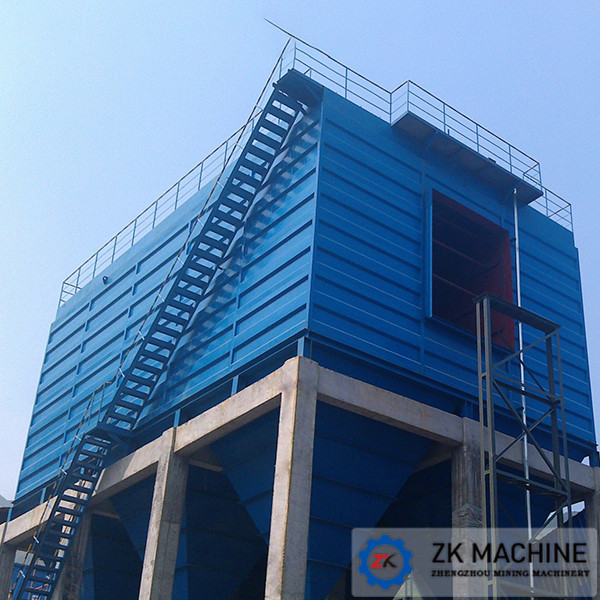

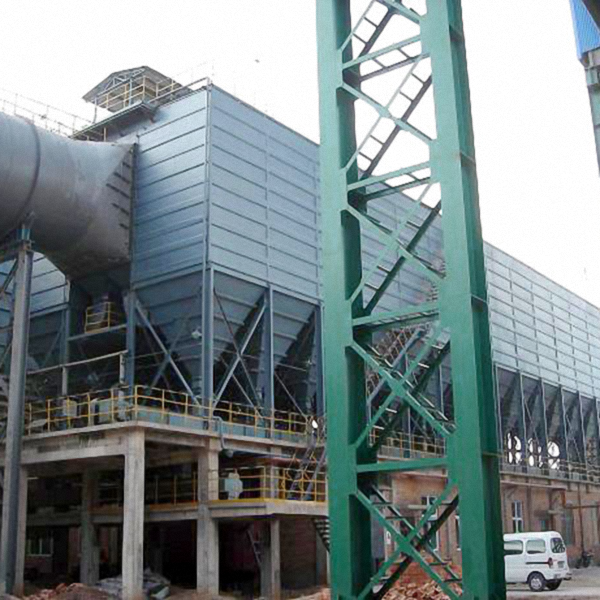

Pulse Dust Collector Machine Industrial Dust Baghouse
It has Election and Purification Functions:
1. The bag filter is designed for mining joint gravel screening
units with large flow, high concentration (Dust Volume is more than
1000g/m) and irregular dust emission characteristics of working
conditions;
2.It meets the requirements of Two and Three class areas under
GB16297-1996;
3.The filter has the advantages of high efficiency dust removal,
small amount of maintenances, long service life, elegant
appearance, etc.
4.It has election and purification functions.
5.It can be widely used in the many fields of mining operations,
electric furnace melting, and machinery manufacturing, chemical
products, building materials, cement (cement grinding mill), waste
incineration and grain processing, etc.
Pulse Dust Collector Advantages:
1. ZXMC series bag-type Dust Removal ilter is a collection of
purifying equipment developed for many fileds covering mine mining,
grinding,electro smelting,machinery casting,chemical
products,building materials,cement(Cement GrindingMill) ,waste
incineration,food processing with large flow ,high concentration
and irregular dust emission characteristics of working conditions.
2. It meets the requirements of Two and Three class areas under
GB16297-1996;
3. The filter has the advantages of high dedusting efficiency,
small amount of maintenances, long service life, elegant
appearance, and etc;
4. It has selection and purification functions;
5. It can be widely used in many fields of mining operations,
electric furnace melting, and machinery manufacturing, chemical
products, building materials, cement (cement grinding mill), waste
incineration and grain processing, and etc,.
6. It has offseted the defects of negative pressure for Cyclone
Dust Collector, and positive pressure for Bag Filter as well.
7. ZXMC Dust Collector, national patent product, adopts compressed
air as clean power. There are blowing pipes on top of every row of
filter bags which make a pulse net. PLC appoints the definit
program to let compressed air go into filter bags through 6.4mm
nozzles, then filter bags inflate instantaneously and dust layer
falls. Meanwhile, the air current reverse and dust in the filter
bags is blown out.
8.This bag-type electronic filter set pulse and cyclones as a whole
collection against mining & quarrying with high dust concentration
and mass contamination characteristics.
9. Products are widely used in electricity, metallurgy, chemical,
building materials and architectural engineering industries.
Pulse Dust Collector Specifications:
| Model | Air volume(m3/h) | Filter speed
(m/min) | Filter area(m2) | Filter bag number
(Piece) | Resistance
(Pa) | Dust concentration
(g/m3) | Thermal insulation layer area
m2 | Weight
(kg) |
| 32-3 | 6900 | 1.2-2.0 | 93 | 96 | 1470-1770 | <1000 | 26.5 | 2880 |
| 32-4 | 8930 | 124 | 128 | 34 | 4080 |
| 32-5 | 11160 | 155 | 160 | 41 | 5280 |
| 32-6 | 13390 | 186 | 192 | 48.5 | 6480 |
| 64-4 | 17800 | 248 | 256 | 70 | 7280 |
| 64-5 | 22300 | 310 | 320 | 94 | 9960 |
| 64-6 | 26700 | 372 | 384 | 118 | 11640 |
| 64-7 | 31200 | 434 | 448 | 142 | 13320 |
| 64-8 | 35700 | 496 | 512 | 166 | 15000 |
| Model | PPC128-6 | PPC128-9 | PPC128-10 | PPC128-2×6 | PPC128-2×7 | PPC128-2×8 |
|
| Volume(m³/h) | 67300 | 100900 | 112100 | 134600 | 157000 | 179400 |
| Air speed(m/min) | 1.2-2.0(Speed varies at different dust points) |
| Filtration area(㎡) | 935 | 1402 | 1558 | 1869 | 2181 | 2492 |
| Net filtration area(㎡) | 779 | 1246 | 1402 | 1713 | 2025 | 2336 |
| No. of bag(pc) | 768 | 1152 | 1280 | 1536 | 1792 | 2084 |
| Resistance(Pa) | 1470-1770 |
| Minus pressure(Pa) | 7000 |
| Dust content at inlet(g/m³) | ＜1300 |
| Dust emission(g/m³) | ≤0.1 |
| Compressed air | Pressure(Pa) | (5-7)×105 |
|
| Air consumption | 3.6 | 5.4 | 6 | 7 | 8.3 | 9.5 |
| (m³/min) |
| Pulse valve | Qty(pc) | 12 | 18 | 20 | 24 | 28 | 32 |
| Size | 2-1/2″ |
| Elevation valve | Qty(pc) | 6 | 9 | 10 | 12 | 14 | 16 |
| Size(mm) | Valve Φ725,air tank Φ100 |
| Discharge device YJD-26 | Outlet 300×300mm Capacity 24m³/h | Double flap valve 305×915 |
| Screw conveyor | Model | Dia. Φ300,capacity 21m³/h | N/A |
| Gearbox | XWD2.2-5-1/43,power 2.2Kw | N/A |
| Air slide | Air slide 250mm,flow rate 2.0m³/㎡, Pressure 6860pa,If the dust
content exceeds 700g/m³ at inlet, bag filter with big screw
conveyor should be considered. |
| Bag size and material | Dia.×lengthΦ130×3050,Gross weight of polyethylene felt
450g/㎡,temperature 120℃ |
| Insulation area(㎡) | 125 | 196 | 205 | 223 | 247 | 262 |
| Total weight(approx.)(Kg) | 24120 | 31680 | 34680 | 43920 | 52680 | 60000 |
| Note 1: Net filtration area means the area of one chamber during
dust removing. |
| 2: The compressed air consumption is based on supply of compressed
air pipe from an air compression station. The consumption should be
considered to be 1.3 times more if the supply is provided by an
independent air compressor. |
