FMS Air Dust Filter Socks Cement Industry Bag Filters For Dust Collector

FMS Air Dust Filter Socks Cement Industry Bag Filters For Dust Collector

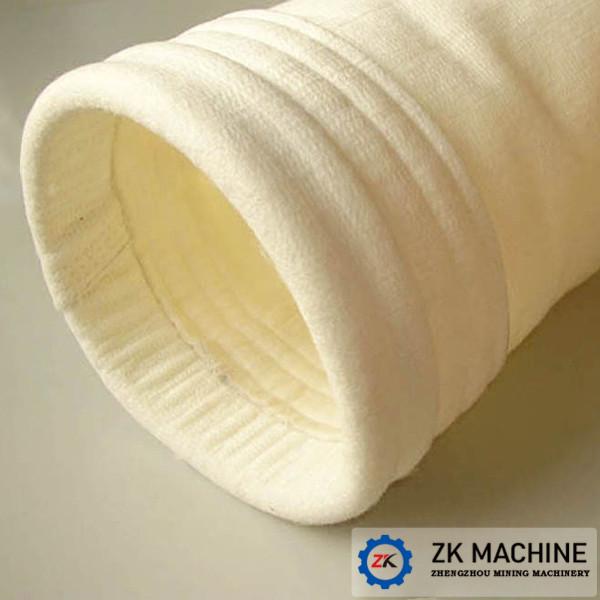

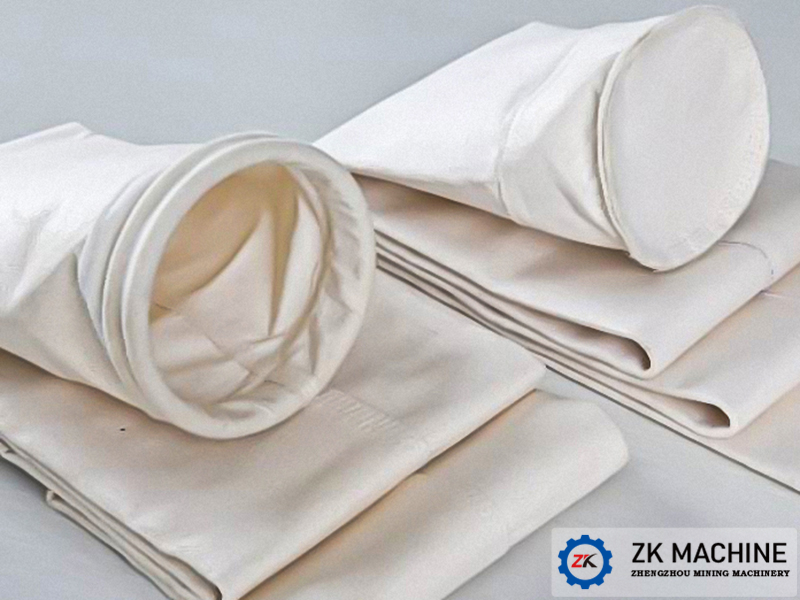

Dust Filter Bags Introduction:
Filter bag is the key part for bag filter operation process, normally the cylinder shaped bags are vertically hanging inside of bag filter. For impulse bag filter, dust is attached to outside surface of bag, when the dusty gas go through bag filter, dust is collected and gathered on the outer surface of bag, and clean air goes through bag and exhaust open air. The bag cage is inside bag for supporting. It can preventing bag fall down. And it also can use to clean dust cake and re-distribution.

Dust Filter Bags Application: Bag filter

Dust Filter Bags Structure:
Filter material use fiber, which has cotton fiber, wool fiber, synthetic fiber and glass fiber etc.

Fluorine Gomez by mixing two or more high-temperature fiber combed through acupuncture layered composite made with three holes into a highly efficient filter material temperature, high temperature, corrosion resistance, easy cleaning and long life. After chemical treatment with different surface finishing technology, also has a water repellent and oil, high speed, high concentrations of dust trapping characteristics, wear bending resistance than glass fiber needle felt filter bag.

Dust Filter Bags Advantages:

1. Normal filter material is 208 and 901 dacron, its operation temperature does not exceed 120℃, however, operation temperature of glass fiber bag is not more than 250℃.

2. Cotton fabric normally used for dusty gas without corrosivity and temperature below 80-90℃.

FMS Air Dust Filter Socks Cement Industry Bag Filters For Dust Collector

Filter Bags Main Features:
1) Free sample is available for quality test before order.
2) The lifetime of qualified bag can last from two years to six years under the condition of reasonable usage.
3) Has the special advantages of low price,high temperature resistant.
4) Functional treatment: PTFE impregnation, coating, laminating and so on.
5) Suitable for pulse dust cleaning and high speed wind counter blowing and other kinds of bag type dust collector

Specifications:

Name	Material	Gram Weight (g/㎡)	Thickness (mm)	Property m³/㎡·min	Breaking Strength (N/5×20cm)		Breaking Elongation(10%)		Operate Temperature (℃)
Name	Material	Gram Weight (g/㎡)	Thickness (mm)	Property m³/㎡·min	Warp	Weft	Warp	Weft	Operate Temperature (℃)
Polyester needle-felt filer bag	Polyester/polyester filament fabric	500±5%	1.8±10%	12	>1200	>1600	<30	<45	≤130
Polyester anti-static needle felt filter bag	Polyester/polyester antistatic fabric	500±5%	1.8±10%	12	>1000	>1600	<30	<45	≤130
Medium temperature needled felt filter bag	Dacron, PPS/glass fiber woven fabric	700±5%	2.2±10%	8-12	>1000	>1500	<10	<10	≤170
Polypropylene filber needled felt filter bag	PP, PP Yarn	500±5%	2.1±10%	12	>960	>1060	<35	<55	≤90
FMS filter bag	Aramid fiber, glass fiber/glass fiber cloth	800±5%	2.4-3.0	8-15	>1800	>1800	<10	<10	≤260
Nomex needle-felt filter bag	Nomex/ nomex fabric	500±5%	2.2±10%	17	>800	>1200	<35	<55	≤200
PPS needle-felt filter bag	PPS/PPS filament fabric	500±5%	1.8±10%	15	>1200	>1300	<30	<30	≤190
P84 needle-felt filter bag	P84/P84 fabric	850±5%	3.5±10%	8-15	>1800	>1800	<10	<10	≤220
Glass fiber needle-felt filter bag	Glass fiber	900±5%	2.0±10%	8-15	>1800	>1800	<10	<10	≤300
