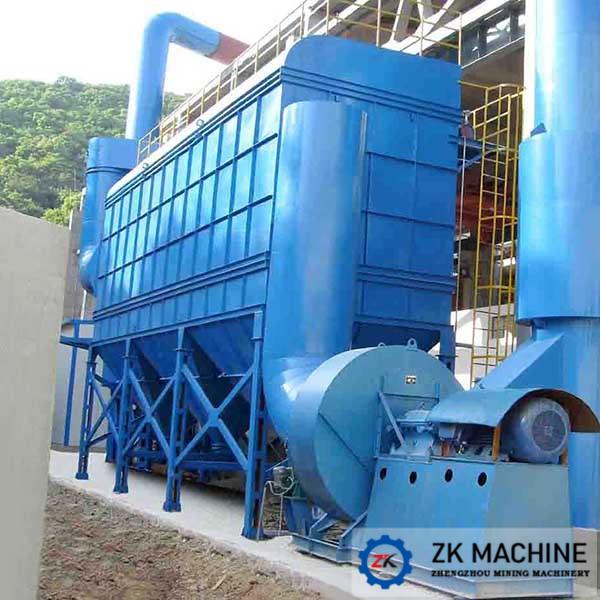

Industrial Pulse Bag Baghouse Dust Collector
Industrial Dust Collector Solution:
Our bag type filter is a kind of small and medium-sized pulse jet
dust collector. The most high efficient dust removal for your dust
prevention circumstance. To adopt pulse blowing dedust and PLC
controller, the automatic working can be come true. The advantage
is reliable operation, easy maintenance and management. Through our
design program and every kind of detectors signal, we can see every
parts of the equipment during it working. Our dust collector
equipment often can be widely used in cement, metallurgy, electric
power, chemical and other industries of dust gas purification and
fine powder material recycling collection.
Structure Composition:
The customized dust catcher are composed by the filter chamber
housing, clean air chamber enclosure, filter bag, filter cage,
pulse injection device, ash hopper, screw conveyor and discharger,
etc. At the end, it needs centrifugal fan for power system. In
another type of dust catcher, the dedusting job can be done by
every chamber isolation. The every chamber of the pulse and soot
cleaning cycle by soot cleaning program controller.
According to different Bag Quantity, Plenum Pulse Dust collector
could be classified as 32bags/room,
64bags/room,96bags/room,128bags/room. Each kind will be divided
into many different type-33 kinds in total.
According to different Bag Quantity, Pulse Dust collector could be
classified as 32 bags/room, 64 bags/room, 96 bags/room, 128
bags/room. Each kind will be divided into many different type-33
kinds in total.
Pulse Bag Baghouse Dust Collector Specifications:
| Model | PPC128-6 | PPC128-9 | PPC128-10 | PPC128-2×6 | PPC128-2×7 | PPC128-2×8 |
|
| Volume(m³/h) | 67300 | 100900 | 112100 | 134600 | 157000 | 179400 |
| Air speed(m/min) | 1.2-2.0(Speed varies at different dust points) |
| Filtration area(㎡) | 935 | 1402 | 1558 | 1869 | 2181 | 2492 |
| Net filtration area(㎡) | 779 | 1246 | 1402 | 1713 | 2025 | 2336 |
| No. of bag(pc) | 768 | 1152 | 1280 | 1536 | 1792 | 2084 |
| Resistance(Pa) | 1470-1770 |
| Minus pressure(Pa) | 7000 |
| Dust content at inlet(g/m³) | ＜1300 |
| Dust emission(g/m³) | ≤0.1 |
| Compressed air | Pressure(Pa) | (5-7)×105 |
|
| Air consumption | 3.6 | 5.4 | 6 | 7 | 8.3 | 9.5 |
| (m³/min) |
| Pulse valve | Qty(pc) | 12 | 18 | 20 | 24 | 28 | 32 |
| Size | 2-1/2″ |
| Elevation valve | Qty(pc) | 6 | 9 | 10 | 12 | 14 | 16 |
| Size(mm) | Valve Φ725,air tank Φ100 |
| Discharge device YJD-26 | Outlet 300×300mm Capacity 24m³/h | Double flap valve 305×915 |
| Screw conveyor | Model | Dia. Φ300,capacity 21m³/h | N/A |
| Gearbox | XWD2.2-5-1/43,power 2.2Kw | N/A |
| Air slide | Air slide 250mm,flow rate 2.0m³/㎡, Pressure 6860pa,If the dust
content exceeds 700g/m³ at inlet, bag filter with big screw
conveyor should be considered. |
| Bag size and material | Dia.×lengthΦ130×3050,Gross weight of polyethylene felt
450g/㎡,temperature 120℃ |
| Insulation area(㎡) | 125 | 196 | 205 | 223 | 247 | 262 |
| Total weight(approx.)(Kg) | 24120 | 31680 | 34680 | 43920 | 52680 | 60000 |
| Note 1: Net filtration area means the area of one chamber during
dust removing. |
| 2: The compressed air consumption is based on supply of compressed
air pipe from an air compression station. The consumption should be
considered to be 1.3 times more if the supply is provided by an
independent air compressor. |
