Fast and high capacity GGBS turnkey production line in SAUDI ARABIA
Blast Furnace Slag Capacity:1.5-25(t/h)
Cement Capacity:3-50(t/h)
Raw Material Capacity:6-110(t/h)
GGBS Production Line OUR ADVANTAGE
1. Comprehensive service
We ZK company is the professional slag powder production line
supplier. We can provide both ball mill and vertical mill
production process, while providing 'turnkey' service from civil
engineering to commissioning.
2. Serious Quality Control
ZKCorp has a strong capacity of manufacturing and could control
product quality seriously with short delivery time. Expert
Installation and After-service Team could ensure to finish plant
installation and start running on time
3. Low cost and proper investment.
Slag Vertical Mill Production Line from ZKCorp engages the
advantages of simple process flow, high-efficiency of grinding,
great drying capacity, efficient Powder-classifying,
easily-adjustable outputting size, low noise and
electricity-consumption, small mill consumption, high degree of
automation, low running expense, which make it suitable for small
and middle plant owner.

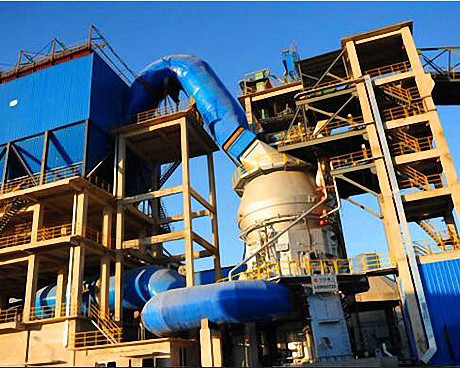

GGBS Production Line PRODUCTION PROCESS BY VERTICAL MILL
Slag is transported into the plant by truck and stored under the
shed. After reclaiming by loader and metering by feeder, the
material is delivered and de-ironed into the vertical mill by the
belt conveyor and its magnetic separator.
After de-ironing the slag enter the vertical mill for grinding.
Dried and grinded slag powder is collected by the separator and
sent into the finished product silo by air chute and bucket
elevator. The discharged slag is sent back to the mill by conveyor
and elevator. The drying heat source is provided by an air heating
furnace.
Vertical Mill Configuration Table
| (t/h)Hourly Capacity | (×10kt/a) | | | |
| | |
Blast Furnace Slag |
Cement |
Raw Material |
Diameter |
Roller Diameter |
| 1.5~2 | 3~4 | 6~8 | 1.5 | 3 | 5.5 | ZKRM08.2 | 1200 | 800 | 55 |
| 3~4 | 5~6 | 10~12 | 3 | 4.5 | 9 | ZKRM11.2 | 1500 | 1100 | 110 |
| 8~9 | 11~13 | 20~22 | 6 | 9.5 | 17 | ZKRM13.2 | 1700 | 1300 | 185 |
| 9~10 | 14~16 | 26~34 | 8 | 12 | 24 | ZKRM15.2 | 1900 | 1500 | 250 |
| 12~14 | 20~23 | 40~50 | 10 | 17 | 36 | ZKRM17.2 | 2100 | 1700 | 355 |
| 15~17 | 24~26 | 50~60 | 13 | 20 | 43.5 | ZKRM19.2 | 2300 | 1900 | 450 |
| 18~20 | 27~30 | 60~75 | 15 | 22.5 | 55 | ZKRM20.2 | 2400 | 2000 | 560 |
| 23~25 | 40~50 | 85~110 | 20 | 35.5 | 77 | ZKRM22.3 | 2600 | 2200 | 710 |
PRODUCTION PROCESS BY BALL MILL
Slag is transported into the plant by truck and stored under the
shed. After reclaiming by loader and metering by feeder, the
material is delivered into the dryer by belt conveyor for drying.
After drying the slag enter the ball mill for grinding. Grinded
slag powder is send into the separator by the bucket elevator for
grading. Qualified power is sent into the finished product silo by
air chute, hoist and elevator. Large particle powders return to
ball mill for re-grinding. There is the dust filter at the
discharge end of the ball mill. The slag dust is collected and
transported into the finished product silo. The drying heat source
is provided by an air heating furnace.
Ball Mill Configuration Table
Blast Furnace Slag |
Cement |
Raw Material |
Blast Furnace Slag |
Cement |
Raw Material |
| 1.5~2 | 3~4 | 6~8 | 1.5 | 3 | 5.5 | φ1.2×4.5m | NHX200 | 55 |
| 3~4 | 5~6 | 10~12 | 3 | 4.5 | 9 | φ1.5×5.7m | NHX300 | 130 |
| 8~9 | 11~13 | 20~22 | 6 | 9.5 | 17 | φ2.2×9m | NHX400 | 475 |
| 9~10 | 14~16 | 26~34 | 8 | 12 | 24 | φ2.2×11m | NHX400 | 570 |
| 12~14 | 20~23 | 40~50 | 10 | 17 | 36 | φ2.4×11m | NHX500 | 630 |
| 15~17 | 24~26 | 50~60 | 13 | 20 | 43.5 | φ2.4×13m | NHX500 | 800 |
| 18~20 | 27~30 | 60~75 | 15 | 22.5 | 55 | φ2.6×10m | NHX600 | 1000 |
| 23~25 | 40~50 | 85~110 | 20 | 35.5 | 77 | φ3.0×11m | NHX700 | 1250 |
