Rotary Kiln Production of Magnesium Metal / Dolomite Calcined
Magnesium
Magnesium rotary kiln is designedaccording to dolomite calcination characters and
Pidgeon process requirement.That is the key equipment in the
calciantion process. The dolomite produced byrotary kiln with
stable quality, high activity and low ignition loss that canmake
higher magnesium extraction rate and silicon utilization rate to
saverunning cost. The rotary kiln is the most suitable equipment
for producemagnesium. The new type energy-saving rotary kiln
designed by ZK Corp. has ownpatent and formed dolomite calcination
standard for magnesium industry inChina.
Main Materials: Dolomite, Ferrosilicon Flurite Powder
Henan Zhengzhou Mining Machinery Co., Ltd began to manufacture
equipments for Mg smelting industry from 1988, and focused on the
technology upgrading and utilization. During 2003-2005, the company

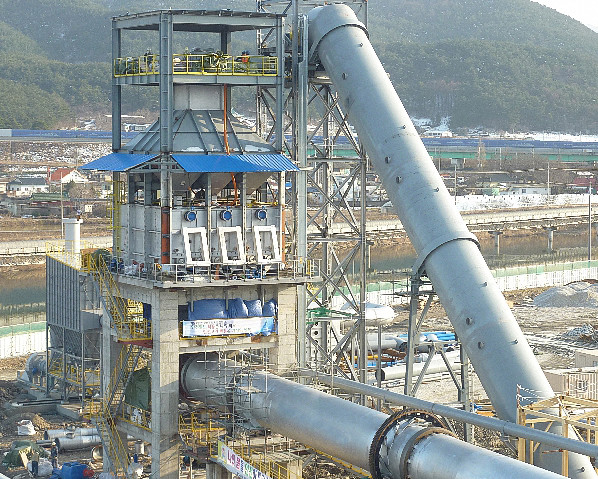

invented Vertical pre-heater for the calcination of dolomite. This
kind of new pre-heater saves fuel by 40% and increases the output
by 30%. The exhaust gas is recycled and dust emission can be
controlled under 50mg/m3. This kind of new pre-heater takes up more
than 85% in the market share. The company has got the patent of
energy-saving rotary kiln, vertical pre-heater and vertical cooler.
OUR ADVANTAGE
1. According to the character of dolomite and its calcination
requirement, the structure of kiln inlet and outlet sections has
been optimized. It can resolve the problem of material returning
back to kiln inlet and the leakage of dust.
2. Inner of the kiln keeps micro negative pressure, dust pollution
is lower.
3. Rotary kiln is even calcination, large capacity and easy to
operation and maintenance.
| Model | Capacity (t/h) | Speed (rpm) | Slope (%) | Support No. | Gearbox | Motor model | Power (kw) | Remark |
| Ø1.6×32m | 2 | 0.58-2.85 | 4 | 3 set | ZQ75-50 | YCTZ50-4A | 18.5 | |
| Ø1.6/1.9×36m | 2.5~3 | 0.53-1.59 | 4 | 3 set | ZQ110-7 | YCTZ50-4B | 22 | |
| Ø1.9×39m | 3~3.5 | 0.53-1.59 | 4 | 3 set | ZQ125-7 | YCT315-4A | 37 | |
| Ø2.2×38m | 5~6 | 0.214-1.64 | 3.5 | 3 set | Main ZS125-5-II | Main YCT315-4A | 37 | ★ |
| Auxiliary ZQ40-40 | Auxiliary Y112M-4 | 4 |
| Ø2.2×45m | 4~5 | 0.214-1.64 | 3.5 | 3 set | Main ZS125-5 | Main YCT315-4B | 45 | |
| Auxiliary ZQ40-40 | Auxiliary Y112M-4 | 4 |
| Ø2.5×40m | 6~7 | 0.62-1.5 | 3.5 | 3 set | Main ZS165-5 | Main YCT355-4A | 55 | ★ |
| Auxiliary ZS50-1 | Auxiliary Y160M-6 | 7.5 |
| Ø2.5×50m | 5~6 | 0.62-1.5 | 3.5 | 3 set | Main ZS165-5 | Main YCT355-4A | 55 | |
| Auxiliary ZS50-1 | Auxiliary Y160M-6 | 7.5 |
| Ø2.8×43m | 7~8 | 0.62-1.5 | 3.5 | 3 set | Main ZS165-6 | Main YCT355-4B | 75 | ★ |
| Auxiliary ZS50-1 | Auxiliary Y160L-6 | 11 |
| Ø2.8×55m | 6~7 | 0.62-1.5 | 3.5 | 3 set | Main ZS165-6 | Main YCT355-4B | 75 | |
| Auxiliary ZS50-1 | Auxiliary Y160L-6 | 11 |
| Ø3×50m | 9~10 | 0.5-1.5 | 3.5 | 4 set | Main ZS165-3 | Main ZSN-280-11B | 125 | ★ |
| Auxiliary ZS50-1 | Auxiliary Y160L-6 | 11 |
| Ø3×60m | 7~8 | 0.5-1.5 | 3.5 | 4 set | Main ZS165-3 | Main ZSN-280-11B | 125 | |
| Auxiliary ZS50-1 | Auxiliary Y160L-6 | 11 |
| Ø3.2×53m | 10~12 | 0.4-1.5 | 3.5 | 3 set | Main ZL130-16 | Main ZSN4-280-11B | 125 | ★ |
| Auxiliary ZL50-10 | Auxiliary Y180L-4 | 22 |
| Ø3.2×64m | 8~10 | 0.4-1.5 | 3.5 | 3 set | Main NZS995-28VBR | Main ZSN4-280-21B | 160 | |
| Auxiliary ZL50-9-2 | Auxiliary Y180L-6 | 15 |
| Ø3.5×70m | 12~14 | 0.4-1.5 | 3.5 | 3 set | Main ZSY500-40 | Main ZSN-315-072 | 250 | |
| Auxiliary ZSY180-31.5 | Auxiliary Y180L-4 | 22 |
| Ø3.6×55m | 14~16 | 0.4-1.5 | 3.5 | 3 set | Main ZSY500-40 | Main ZSYN-315-072 | 250 | ★ |
| Auxiliary ZL65-16 | Auxiliary Y180L-4 | 22 |
| Ø3.8×58m | 18~20 | 0.4-1.5 | 3.5 | 3 set | Main ZSY500-40 | Main ZSN315-072 | 250 | ★ |
| Auxiliary ZL50-14 | Auxiliary Y180L-4 | 22 |
| Ø4.0×60m | 104 | 0.4-1.5 | 3.5 | 3 set | Main ZSY630-35.5 | Main ZSN4-355-092 | 315 | ★ |
| Auxiliary ZL65-16 | Auxiliary Y200L-4 | 30 |
