Waste Incineration Facility / Waste Incineration Plants and
Equipment

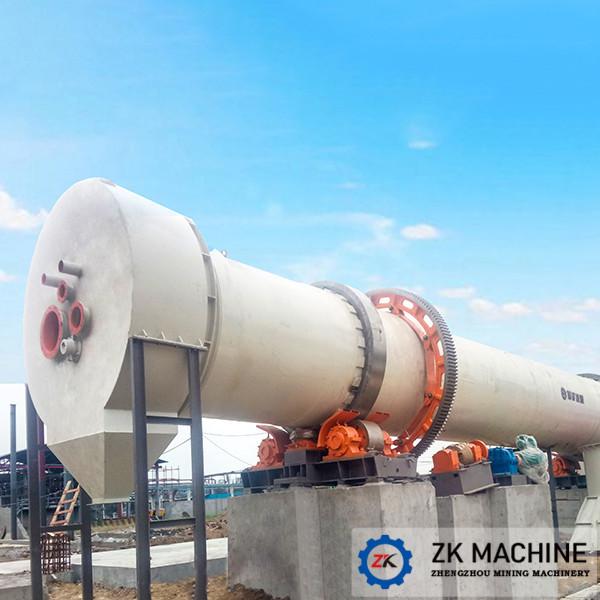

Rotary Incinerator Introduction:
Rotary incinerator is a widely used incineration equipment in the field of
international industrial waste treatment, its market share in the
field of industrial waste incineration is really high.As a specific
area for burning hazardous wastes , the rotary incinerator has wide
adaptability to complex industrial waste and medical waste, and
it’s stable and convenient to operate, of course, the equipment
maintenance is simple, and so on. Therefore, it is the most widely
used in the field of international hazardous waste incineration. It
is a reliable and effective means to realize the harmless,
reduction and recycling of wastes.
Application:
It is widely used in the field of industrial waste, medical waste,
municipal solid waste, and so on.
Applicable Material:
Hazardous waste, sludge waste, oily sludge, industrial waste, PVC
material, medical waste, municipal waste, and so on.
Our Products Advantages:
1. Low cost: High temperature material contact refractory material.
Replacing lining is convenient;
2. The driving mechanism is simple: The drive mechanism is in the
kiln housing. the equipment maintenance is easy.;
3. Ensure that harmful gases do not leak: Good sealing measures and
furnace negative pressure.
4. Easy to operate and maintain: Equipment running rate is high.
The annual operation rate is generally 90%.
5. Adaptability to incineration: Solid waste ,liquid, colloid, and
gas can be incinerated simultaneously.
6. High heat utilization rate: The material was churned forward.
The three heat transfer modes coexist in one furnace.
7. Combining patented technology: The traditional two combustion
chamber is evolved into a two combustion furnace. The burnout rate
of ash is improved. The combustion efficiency of rotary kiln is
improved. At the same time, it has the functions of slag
discharging at normal temperature, crushing slag and sealing,
locking air, etc.
Specifications:
| Hazardous waste rotary kiln for waste incinerationφ2.6m*13.2
technical parameter. |
| Inner diameter of shell 2600mm | Shell length 13200mm |
| Downstream arrangement, that is, the direction of material flow is
consistent with the direction of smoke flow, the angle of the kiln
body is 1.5 degrees. |
| Variable frequency speed control of rotary kiln | 0.1-2.2r/min |
| Drive mode | Single side gear drive |
| Main Motor | 30kw |
| Kiln temperature:850-1200 degree | Surface temperature of kiln shell: 180 degree |
| Expansion mode | Linear free expansion at both ends |
| Total equipment weight | approx. 54.5t |
| ★Customized waste incineration rotary kiln can be provided
according to the customers' different industries |
