Calcined Sinter Dolomite Cement Rotary Kiln Convenient Maintenance

Ask Lasest Price
Brand Name :	ZK
Model Number :	Dolomite rotary kiln
Certification :	ISO,CE
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, Western Union, MoneyGram
Supply Ability :	20 PER MONTH
Delivery Time :	30DAYS

Add to Cart

Product Details
Company Profile

Calcined Sinter Dolomite Cement Rotary Kiln Convenient Maintenance

Calcined Sinter dolomite rotary kiln for cement plant

Application:

Rotary kiln is thermal equipment to heat materials. It is widely used in the fields of cement, nonferrous metallurgy, ferrous metallurgy, refractory material, chemical, and making-paper.

Main Features:

1. Support device: advanced shaft structure, automatic temperature measuring device and electrical heating.

2. Catch wheel: including two kinds mechanical wheel and hydraulic pressure.

3. Gears: single or double. Control the rotating speed by variable motor, DE machine and frequency variable motor. Be reliable, energy –saving, and efficient.

4. Cylinder tyre bolster: lower bolster has three types: fixed, zoom and floating. The structure is simple, replacement is convenient and won’t hurt cylinder.

5. Sealing equipment: there are many kinds for choice according to kiln models, including air cylinder edge sealing, spring edge sealing, and graphite block sealing and combination for above. The feather is adaptive for cylinder rotating and swing. And sealing effect is very good.

6. Kiln head hood: including stationary type and flexible type.

Working Principle:

Rotary Kiln is usually working as following : The kiln is a cylindrical vessel, inclined slightly to the horizontal, which is rotated slowly about its axis. The raw material to be processed is fed into the upper end of the cylinder. While the kiln rotates, material gradually goes down towards the lower bottom, and may undergo a certain amount of stirring and mixing. Hot gases pass along the kiln, sometimes in the same direction as the process material (co-current), but usually in the opposite direction (counter-current). The hot gases may be generated in an external furnace, or may be generated by a flame inside the kiln. Such a flame is projected from a burner-pipe (or “firing pipe”) which acts like a large bunsen burner. The fuel for this may be gas, oil or pulverized coal.

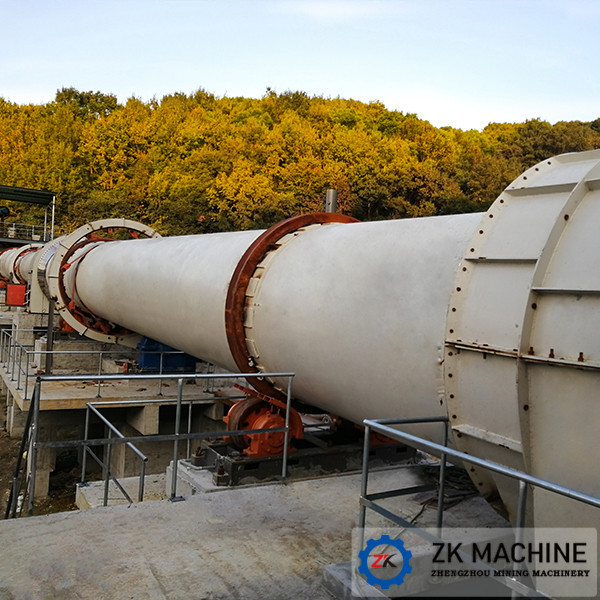

Calcined Sinter Dolomite Cement Rotary Kiln Convenient Maintenance

Specifications:

Spec	Output(t/h)	Rev(rpm)	Pedestal Number	Reducer	Electricmotor	Powe(kW)
					Model
Ф1.6x32m	2.0	0.58-2.85	3	ZQ75-50	YCT250-4A	18.5
Ф1.6/1.9x36m	2.5-3.0	0.53-1.59	3	ZQ110-7	YCT250-4B	22
Ф1.9x39m	3.0-3.4	0.53-1.59	3	ZQ125-7	YCT315-4A	37
Ф2.2x45m	4.0-5.0	0.21-1.64	3	hostZS125-5	hostYCT315-4B	45
				assistZQ40-40	assistY112M-4	4
Ф3.2x50m	1000	0.79-3.94	3	hostNZS955-28VBR	hostZSN4-280-21B	160
				assistZL50-9-2	assistY180L-6	15
Ф3.2x64m	8.0-10.0	0.40-1.50	4	hostZL130-16	hostZSN-280-11B	190
				assistZL50-10	assistY180L-4	22
Ф3.2x118m	17.0	0.29-1.46	6	hostJH500C-SW-71	hostZ4-250-31	110
				assistZL50-8-1	assistY160L-6	11
Ф3.3x50m	1000	0.36-3.57	3	hostNZS995-40-VBL	hostZSN4-280-21B	160
				assist NZS352-31.5	assistY160M-4	11
Ф3.8x58m	20.8	0.4-1.5	3	hostZSY500-40	hostzsn-315-072	250
				assistZL50-14	assisty180L-4	22
Ф4.0x60m	25	0.4-1.5	3	hostZSY630-35.5	hostZSN4-355-092	315
				assistZL65-16	assistY200L-4	30
Ф4.0x80m	29.17	0316-1.528	4	hostJH560C-SW-71	hostZSN4-280-11B	160
				assistZL50-9-1	assistY180L-6	15
Ф4.0/3.5/4.0x150m	30.4	0.34-1.71	6	hostJH560C-SW-56-1/2	hostZSN4-280-11B	2X125
				assistZL50-10-1/2	assistY160L-6	2X11
Ф4.0x150m	33.3	0.51-1.53	6	hostJH560C-SW-63-1/2	hostZSN4-280-11B	2X125
				assistZL60-12-1/2	assistY160L-6	2X11
Ф4.0x150m	30.0-34.0	0.40-1.59	6	hostJH800C-SW-90	hostZSN4-355-092	280
				assistJH280-SW-40	assistY200L-4	30
Ф4.7x72m	4000	0.35-3.50	3	hostZSY710-28-V	hostZ4-400-32	550
				assistZL60-7-2	assistY200L-4	30
