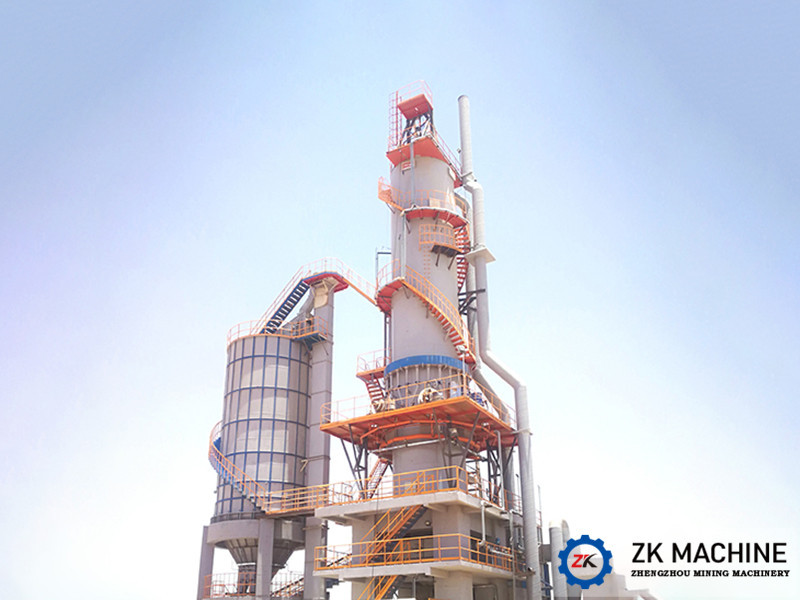

Vertical Shaft Kiln for Petroleum Coke Calcination / Shaft Kiln
Price
Vertical Shaft Kiln Introduction:
Cement Shaft Kiln is used for calcination in cement plant. We offer 50 TPD to 300
TPD vertical shaft kiln on turnkey basis for Cement Plant. Cement
Shaft Kiln is modern day answer for cost effective production and a
boon for the developing countries. VSK is the advanced technology
available worldwide for small & medium entrepreneur.
We (ZK Corp) fabricate vertical shaft kiln, rotary kiln, raw meal
mill, ball mill, O-sepa and all other related equipment for the
construction of small size & medium size cement plants.
The Special and Main Equipment for the Kiln as Follows:
1.Limestone batching electric weighing system
2.Intelligent master controller
3.Rotary distributing devices
4.Intelligent detection of material level gage
5.Simulation hood
6.Pan discharging lime machine
7. Two section seal valve lime discharging machine
Shaft Kiln Technological Process:
Shaft Kiln inner structure from top to bottom is pre-heating zone,
upper counter-follow calcining zone, lower parallel-follow
calcining zone, and cooling / discharge zone. Raw material is
screened firstly, then transferred to the top of the kiln by the
hoisting hopper, and then feed into the kiln body by the rotary
distributor evenly. Preheated raw material moves into the upper
calcining zone along the annular furnace charge space in where the
raw material is effective in decarburization. The almost-finished
lime in the upper calcining zone moves into the lower calcining
zone for effective homogeneous, then moves down to the cooling
zone, finally drops into the lime silo under the kiln by lime
pusher platform. The finished lime transferred to the storage by
the belt conveyer.
Technical Parameters:
| Technical Parameters Of Vertical Klin (Mixed Fuel) |
| Capacity(t/d) | Effective Volume | Effective Height | Effective Section | Limestone Size | Heat Consumption | CaO | Activity |
| (m3) | (m) | Dia.(m) | (mm) | (kJ/kg) | (%) | (mL) |
| 100 | 98 | 20 | Ø2.5 | 30~60/40~80 | <4600 | >90 | >300 |
| 120 | 141 | 20 | Ø3.0 | 30~60/40~80 | <4600 | >90 | >300 |
| 150 | 202 | 21 | Ø3.5 | 30~60/40~80 | <4500 | >90 | >300 |
| 200 | 301 | 24 | Ø4.0 | 30~60/40~80 | <4500 | >90 | >300 |
| 300 | 397 | 25 | Ø4.5 | 30~60/40~80 | <4400 | >90 | >300 |
| 400 | 491 | 25 | Ø5.0 | 30~60/40~80 | <4200 | >90 | >300 |
| 500 | 735 | 26 | Ø6.0 | 30~60/40~80 | <4200 | >90 | >300 |
| Remarks: All above data are for reference only. |
| | | | | | | | |
| Technical Parameters Of Vertical Lime Kiln (Fuel: Gas) |
| Capacity(t/d) | Effective Volume | Effective Height | Effective Section | Limestone Size | Heat Consumption | CaO | Activity |
| (m3) | (m) | Dia. or L×W(m) | (mm) | (kJ/kg) | (%) | (mL) |
| 50 | 70 | 20 | Ø2.0 | 30~60/40~80 | <4600 | >90 | >300 |
| 70 | 80 | 20 | Ø2.5 | 30~60/40~80 | <4600 | >90 | >300 |
| 80 | 100 | 20 | Ø2.5 | 30~60/40~80 | <4500 | >90 | >300 |
| 100 | 120 | 20 | Ø2.7 | 30~60/40~80 | <4500 | >90 | >300 |
| 120 | 140 | 20 | Ø3.0 | 30~60/40~80 | <4400 | >90 | >300 |
| 130 | 150 | 21 | Ø3.0 | 30~60/40~80 | <4200 | >90 | >300 |
| 150 | 200 | 20 | 2.5×4.5 | 30~60/40~80 | <4200 | >90 | >300 |
| Remarks: Above data are for reference only, and suitable for
Vertical Kiln which use low heat fuel. Utilization coefficient of
Vertical Kiln which use high heat fuel is higher. |
