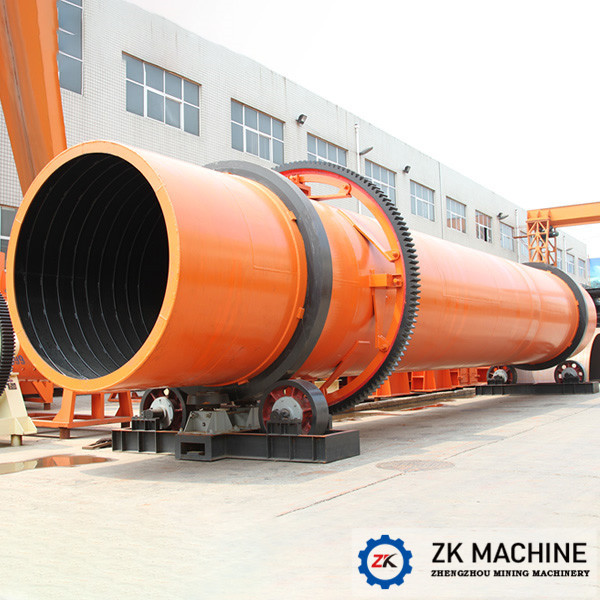

High Capacity Drum Coal Drying Machine for Sale
Coal Drying Machine Introduction:
Coal dryer can dry many kinds of materials which contain moisture, such as
coal, coal slurry, slag, industrial waste, and clay stone. They are
widely used in building materials, metallurgy, and chemical
industry. The dryer can use coal, gas, electricity, oil and wind
power to heat the dryer machine.
Coal Drying Structure:
Coal rotary dryer is mainly compose of driving device, supporting
roller, thrust roller, cylinder, kiln inlet, kiln outlet and
sealing device.
1. 2-3 supporting points can guarantee the contacting surface
between supporting roller and tyre is paralleled with axis line of
cylinder during installation.
2. Supporting device is antifriction bearing (occasionally uses
slide bearing). This design has simplified the supporting device of
supporting roller, and reduced the useless power loss during
operation. It has the features like easy operation and maintenance.
3. Suitable shim between tire and shell will ensure the tire ring
on the shell tightly to increase the shell strength.
4. The main driving system uses new type AC variable frequency
technology. Compared with electromagnetic speed control and DC
speed control, that can save energy, have large range & high
precision of speed regulation, high efficiency and running
smoothly.
5. Radial direction contacting type sealing device is adopted at
kiln inlet and outlet. They are perfect suitable for dimension
tolerance of cylinder and skewing movement of cylinder. This
sealing device’s feature is good performance, longer working life
and easy for replacement.
Our Advatages of Coal Dryer:
1. High drying efficiency, big capacity, high running rate
2. Compact structure, operation stable, easy maintenance
Specifications:
| specification | cylinder | Capacity(t/h) | motor | Power(kw) | reducer |
| D(mm) | L(mm) | Slope(°) | Speed(rpm) | model |
| 1212 | 1200 | 12000 | 1.8 | 5 | 2-5 | Y160LM-6 | 11 | ZQ500 |
| 1515 | 1500 | 15000 | 1.8 | 4.28 | 4-5 | Y160L-6 | 18.5 | ZQ650 |
| 1818 | 1800 | 18000 | 1.8 | 5 | 6-8 | Y200LI-6 | 22 | ZA650 |
| 2020 | 2000 | 20000 | 2.0 | 3.28 | 7-10 | Y200L2-6 | 30 | ZQ650 |
| 2222 | 2200 | 22000 | 1.8 | 2.8 | 9-14 | Y250M-6 | 45 | ZQ650 |
| 2424 | 2400 | 24000 | 2.5 | 2.82 | 14-16 | Y280S-6 | 55 | ZQ750 |
| 2626 | 2600 | 26000 | 2.5 | 2.58 | 16-18 | Y280M-6 | 75 | ZQ850 |
| 2828 | 2800 | 28000 | 2.5 | 2.55 | 20-22 | Y315S-6 | 90 | ZL115 |
| 3030 | 3000 | 30000 | 2.5 | 2.69 | 22-24 | Y315L1-6 | 132 | ZL130 |
| 3232 | 3200 | 32000 | 2.5 | 2.6 | 24-26 | Y315M-4 | 200 | ZSY450 |
| 3434 | 3400 | 34000 | 2.5 | 2.51 | 26-28 | Y315L2-4 | 315 | ZL130 |
| 3634 | 3600 | 36000 | 2.5 | 2.51 | 30-40 | Y315L2-4 | 315 | ZL130 |
| 4040 | 4000 | 40000 | 2.5 | 2.09 | 40-45 | YKK4003-4 | 400 | ZSY630 |
| 4242 | 4200 | 42000 | 2.5 | 2.09 | 45-46 | YKK4005-4 | 400 | ZSY630 |
Our service: Training & Service
Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and
manufacturer equipment,
according to your special demand.
Sale services: servant
Send technicians to the jobsite for guiding the installation and
adjustment, training operators
and finishing the check and accept together with you.
After-sale services: faithfulness
To establish long term friendship, we will regularly pay return
visit to customers.
In addition, we provide one-year warrantee to make sure your
machine runs consistently. We always keep certain inventory level
of spare parts, which means the replacements can be shipped to you
right away.
Welcome to visit our company and workshop, we sincerely look
forward to cooperating with you. We will provide you with the most
suitable products with the reasonable price.
Packaging Detail :
The main machinery is in nude packing and spare parts in Wooden or
steel box standard export packing, suitable for long distance
delivery.
