    Crushed Ore Rod Mill Crusher 500TPH Ball Mill Crusher For Non Ferrous Metal

    Ask Lasest Price
    Brand Name : ZK
    Model Number : Rod Mill
    Certification : ISO,CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10 PER MONTH
    Delivery Time : 30DAYS
    • Product Details
    • Company Profile

    Crushed Ore Rod Mill Crusher 500TPH Ball Mill Crusher For Non Ferrous Metal

    Higher Quality Longer Service Life Lower Cost Rod Mill For Primary Grinding Of Crushed Ore


    Rod Mill Description

    Rod mills are mainly used for primary grinding of crushed ore with a particle size range up to 50 mm for soft materials, and between 20 and 30 mm for harder materials where a narrow product size distribution is required (e.g. for subsequent gravity separation).
    Rod mills create a coarser product than do ball mills and typically operate at a slower mill speed. Rod mills can be either wet or dry designs. Dry applications feature a peripheral discharge or an air-swept arrangement.


    Advantages

    1. The discharging granularity of rod mill is evener and the output is higher;
    2. The grinding media contact with the ore in a linear manner, so that it has selective grinding function;
    3. When used for coarse grinding, the processing amount of rod mill is higher than that of the ball mill with the same specification;
    4. Liner of ball mill is made of high-quality wear resistant material with high strength, wear resistance and long working life.


    Rod Mill Parameter Spare

    ModelCylinder Diameter (mm)Cylinder Length (mm)Motor ModelMotor Power (kW)Motor Rotating Speed (r/min)Length (mm)Width (mm)Height (mm)Capacity (t/h)Effective Volume (m3)Weight (kg)
    MBY 09189001800Y225M-8227304980237020200.62~3.20.95700
    MBY 09249002400Y250M-8307305670328020200.81~4.31.25880
    MBY 122412002400Y280M-8457306450280025000.4~4.92.2812308
    MBY 153015003000JR125-895725793531852280519990
    MBYg 153015003000JR117-8807257253307022802.4~7.5521210
    MBYg 213021003000JR136-818073581224220307314~35942123.5
    MBYg 213621003600JR137-821073589584320302543~6110.845800.5
    MBYg 243024003000JR138-82807359004.54836.4349011.555795
    MBYg 273227003200JR157-8320750105095000362015.783110
    MBYg 273627003600JR158-8380743107645750362032~8617.790441
    MBY 274027004000TDMK400-32400187.5123005700470043~11020.475000
    MBY 304030004000JR1510-857074098003900390054~1352690000
    MBY 324532004500TDMK800-36800167146007000530064~18031113000
    MBY 364536004500TDMK1250-401250150152008800680080~23041.8139000
    MBY 365436005400TDMK1600-4016001501590088006800100~25049.7150000

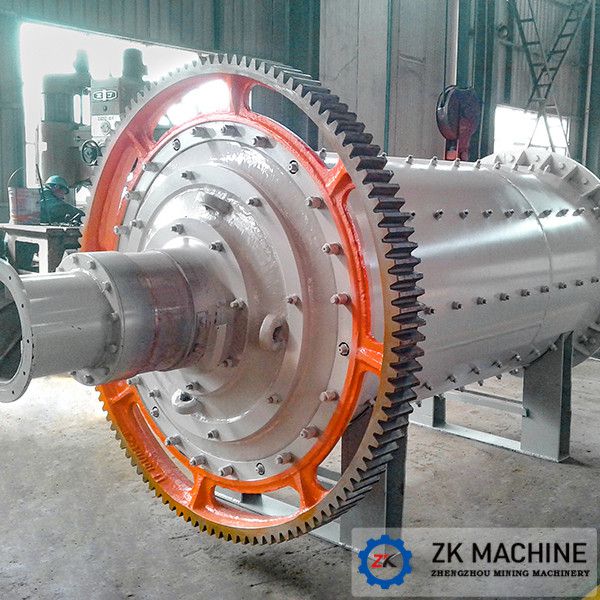

    Product Photo

    About Us

    Henan Zhengzhou Mining Machinery Co., Ltd (hereinafter referred to as “Henan ZK Corp”)., founded in 1956.

    After more than 60 years of development, it has gradually developed from a single mechanical equipment manufacturing enterprise into a high-tech enterprise which is integrating scientific research, engineering, manufacturing, installation, commissioning and operation guarantee, with a net asset of more than US$29 million.
