Energy-Efficient Vertical Mill For Grinding Coal, Quartz, Feldspar,
Limestone, Dolomite, Etc.
Vertical Mill Description
Coal Vertical Mill is a mechanical device used to pulverize coal
for combustion in the steam-generating furnaces of fossil fuel
power plants. The final product’s fineness of coal pulverized
machine can reach 38micron (400mesh).
Coal vertical mills are designed to achieve the maximum rated
capacity grinding a design coal with a grindability of 55 HGI and
8-12 percent moisture and achieving a discharge fineness of 70 per
cent passing a 200 mesh screen (74 micron) and 99.5 per cent
passing a 50 mesh screen. Variation of the coal hardness and/or
moisture content will effect, up or down, the discharge capacity or
the discharge fineness.
To achieve these design considerations it is essential that the
grinding elements are in good condition and they maintain a
consistent profile. The loss of the grinding profile results in a
loss of grinding efficiency, meaning the pulveriser must work
harder to achieve an equal result.
Ultimately a point will be reached in which either a loss of
capacity or a loss of fineness will result under uniform
conditions. Longer lasting, more consistent grinding elements are
crucial to pulveriser operation yielding longer operating
campaigns, reduced maintenance and a lower overall invested cost.
Application
Coal pulverized machine is the ideal powder making equipment in
electric power industry, metallurgy industry, chemical industry,
building construction, coal industry, fireproofing materials making
industry and some others.
Product Feature
1. High grinding efficiency and low power consumption;
2. Low metal consumption in unit product;
3. Bed grinding with low noise;
4. Negative pressure and low dust pollution;
5. Small floor space, compact layout, system equipment with light
weight and low investment for civil construction.
Parameter Spare
| Specification & Technical Parameter Table of ZKRM Vertical Raw Mill |
| Model | Pitch diameter of grinding disc (mm) | Capacity (t/h) | Raw material moisture (%) | Raw material fineness (%) | Crude material moisture (%) | Motor Power (kW) |
| ZKRM08.2 | 800 | 6-8 | <10% | R0.08<12% | ≤1% | 55/75 |
| ZKRM11.2 | 1100 | 10-12 | <10% | R0.08<12% | ≤1% | 110/132 |
| ZKRM13.2 | 1300 | 20-25 | <10% | R0.08<12% | ≤1% | 185/200 |
| ZKRM15.2 | 1500 | 26-34 | <10% | R0.08<12% | ≤1% | 250/280 |
| ZKRM17.2 | 1700 | 40-55 | <10% | R0.08<12% | ≤1% | 355/400 |
| ZKRM19.2 | 1900 | 55-70 | <10% | R0.08<12% | ≤1% | 450/500 |
| ZKRM20.2 | 2000 | 60-75 | <10% | R0.08<12% | ≤1% | 560/630 |
| ZKRM22.3 | 2200 | 85-110 | <10% | R0.08<12% | ≤1% | 710/800 |
| ZKRM24.3 | 2400 | 95-130 | <10% | R0.08<12% | ≤1% | 800/900 |
| Note: Raw material grindability index ≤13kWh/t |
| Specification & Technical Parameter Table of ZKRM Vertical Cement Mill |
| Model | Pitch diameter of grinding disc (mm) | Capacity (t/h) | Raw material moisture (%) | Product specific surface area (㎡/kg) | Product moisture (%) | Motor Power (kW) |
| ZKRM08.2C | 800 | 3-4 | <3% | ≥350 | ≤1% | 55 |
| ZKRM11.2C | 1100 | 5-6 | <3% | ≥350 | ≤1% | 110 |
| ZKRM13.2C | 1300 | 11-13 | <3% | ≥350 | ≤1% | 185 |
| ZKRM15.2C | 1500 | 14-16 | <3% | ≥350 | ≤1% | 250 |
| ZKRM17.2C | 1700 | 20-23 | <3% | ≥350 | ≤1% | 355 |
| ZKRM19.2C | 1900 | 24-26 | <3% | ≥350 | ≤1% | 450 |
| ZKRM20.2C | 2000 | 27-30 | <3% | ≥350 | ≤1% | 560 |
| ZKRM22.3C | 2200 | 40-50 | <3% | ≥350 | ≤1% | 710 |
| ZKRM24.3C | 2400 | 50-65 | <3% | ≥350 | ≤1% | 900 |
| Note: Raw material grindability index ≤18kWh/t |
| Specification & Technical Parameter Table of ZKRM Vertical Slag (Steel Slag) Fine Powder Mill |
| Model | Pitch diameter of grinding disc (mm) | Capacity (t/h) | Slag moisture (%) | Slag specific surface area (㎡/kg) | Crude material moisture (%) | Motor Power (kW) |
| ZKRM08.2S | 800 | 1.5-2 | <15% | ≥420 | ≤1% | 75 |
| ZKRM11.2S | 1100 | 3-4 | <15% | ≥420 | ≤1% | 132 |
| ZKRM13.2S | 1300 | 8-9 | <15% | ≥420 | ≤1% | 200 |
| ZKRM15.2S | 1500 | 9-10 | <15% | ≥420 | ≤1% | 280 |
| ZKRM17.2S | 1700 | 12-14 | <15% | ≥420 | ≤1% | 400 |
| ZKRM19.2S | 1900 | 15-17 | <15% | ≥420 | ≤1% | 500 |
| ZKRM20.2S | 2000 | 18-20 | <15% | ≥420 | ≤1% | 630 |
| ZKRM22.3S | 2200 | 23-25 | <15% | ≥420 | ≤1% | 800 |
| ZKRM24.3S | 2400 | 26-34 | <15% | ≥420 | ≤1% | 900 |
Note: Slag grindability index ≤25kWh/t; Steel slag grindability
index ≤30kWh, When grinding steel slag powder, the output decreases
by about 30-40%
|

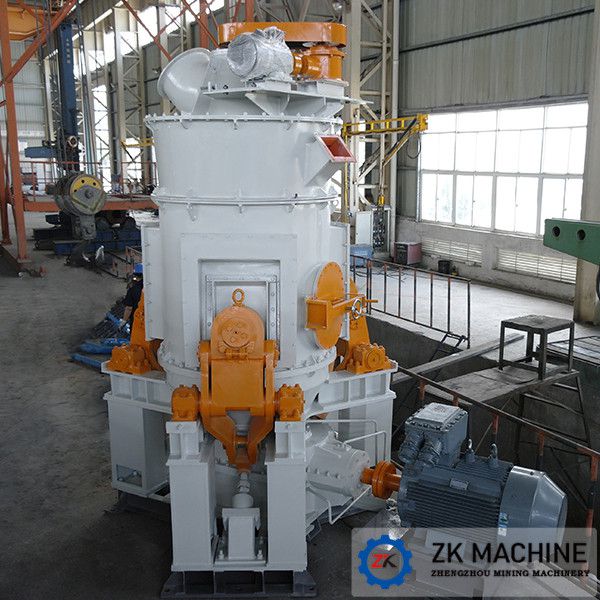

Equipment Photos and Project Site
About Us
Henan Zhengzhou Mining Machinery Co., Ltd (hereinafter referred to
as “Henan ZK Corp”)., founded in 1956.
After more than 60 years of development, it has gradually developed
from a single mechanical equipment manufacturing enterprise into a
high-tech enterprise which is integrating scientific research,
engineering, manufacturing, installation, commissioning and
operation guarantee, with a net asset of more than US$29 million.
